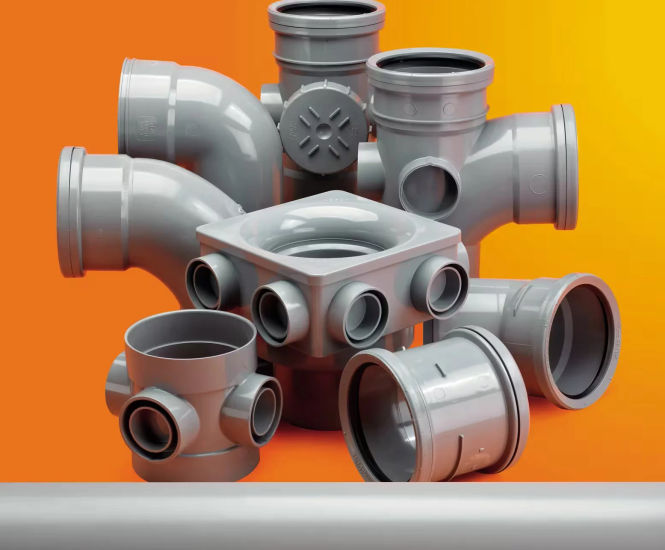

Wavin OsmaSoil and Vent - pvc soil and vent pipe system
Wavin OsmaSoil and Vent is a PVC-U soil drainage system for domestic and commercial buildings, designed for secure connections using push-fit or solvent jointing. Key features include captive seal technology, a unique keyway for correct alignment, and pipes made from at least 50% recycled PVC using Recycore Technology: PVC-U soil drainage system
Click for full image
Wavin OsmaSoil and Vent - pvc soil and vent pipe system for drainage
Wavin OsmaSoil and Vent is a PVC-U soil drainage system for domestic and commercial buildings, designed for secure connections using push-fit or solvent jointing. Key features include captive seal technology, a unique keyway for correct alignment, and pipes made from at least 50% recycled PVC using Recycore Technology.
PVC-U soil drainage system for above-ground waste and vent applications
Captive seal prevents seal displacement and maintains airtight joints
Unique keyway system helps achieve correct pipe fall during installation
Pipes made from at least 50% recycled PVC with Recycore Technology
Specialist fittings such as a compact 6-boss manifold and acoustic coupler
Available in black, grey, and white
Ring-seal (push-fit) in 82mm, 110mm, and 160mm sizes; solvent weld in 110mm and 160mm sizes
Applications
Soil and vent pipework for domestic and commercial above-ground drainage
Dimensions
Ring-seal (push-fit): 82mm, 110mm, 160mm
Solvent weld: 110mm, 160mm
Materials
PVC-U
Colours
Black
Grey
White
Options and variations
Plain ended and single socketed pipes
6-boss manifold fitting
Acoustic coupler
Performance
Captive seal maintains airtight joints
Acoustic coupler limits structural and airborne sound
