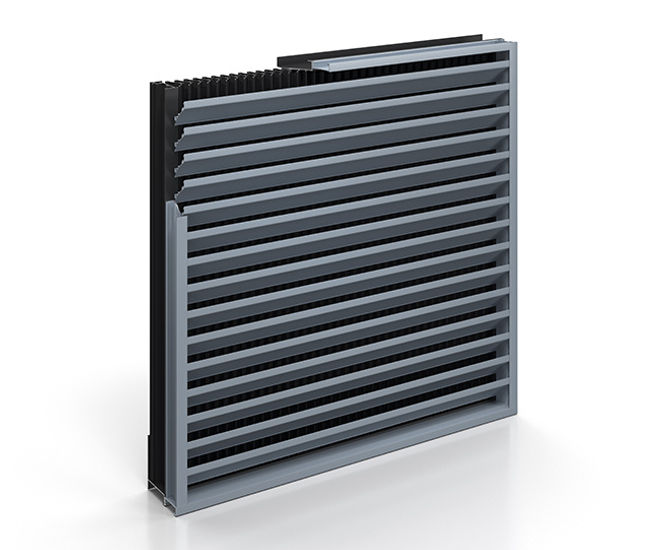

RS-5225 double-bank architectural louvres have an inverted 64mm pitch front blade, 135mm deep, designed for high-level façade installations where sightproofing from below is required.

  • Double-bank louvre with inverted horizontal front blades for continuous architectural lines while providing visual screening

  • High-performance vertical blade rear module for Class A rain defence up to 3.5m/s

  • Rear modules powder-coated matt black as standard

  • Class 3 intake and extract airflow performance, tested to EN 13030

  • Factory pre-assembled and delivered as double-bank units

  • Vertical joints are invisible; horizontal joints can be visible or invisible

  • Blanking panels used in non-active zones

  • Minimum 55% recycled aluminium content

Applications

  • High-level installations where sightproofing from below is required

  • Façades requiring reliable wind-driven rain resistance with a continuous blade appearance

Dimensions

  • Depth: 135mm

  • Blade pitch: 64mm (front, inverted)

  • Front louvre nominal thickness: 1.52mm (blades, head, cill, jamb frames, mullions)

  • Rear louvre nominal thickness: 1.27mm (blades), 2.03mm (head, cill, jamb frames, mullions)

  • Max module height: 3000mm

  • Max module width: 3600mm

  • Weight: 34kg/m² (based on 2m x 2m module), max 80kg per unit recommended

Materials

  • Aluminium alloy 6063-T6

  • Minimum 55% recycled content (mix of pre- and post-consumer scrap)

Finish

  • Rear modules: powder-coated matt black as standard

Front louvres:

  • Mill finish

  • Polyester powder-coated matt (standard)

  • Polyester powder-coated gloss

  • Clear anodised

  • Colour anodised

Options and variations

  • Bird/vermin guards - galvanised weld mesh (standard) or expanded aluminium

  • Insect mesh

  • Blanking - single-skin plates or insulated panels

  • Dampers

  • Custom sizes available

Performance

  • Rain defence: Class A up to 3.5m/s

  • Airflow: Class 3 intake and extract

  • Tested to EN 13030

Installation

  • Factory pre-assembled and delivered as double-bank units

  • Horizontal joints: visible or invisible

  • Vertical joints: invisible

  • Blanking panels compatible with rear frame in non-active zones

Sustainability

  • Minimum 55% recycled aluminium content (pre- and post-consumer scrap)

Product accreditations

  • Tested to EN 13030 for rain defence and airflow performance

  • Cradle to Cradle Certified Bronze (applies to a range of colours and finishes)

Warranty

  • 2-year product warranty

  • Up to 30-year finish warranty (powder-coated or anodised)
