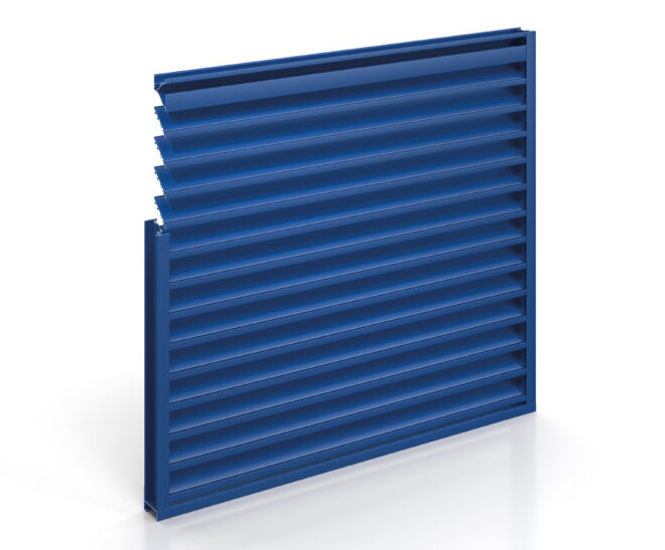

A-2097 shallow ventilation louvre at 53mm deep, with a 48mm horizontal blade pitch. Designed for space-limited applications where airflow, particularly mechanical extract is the priority. Can be specified in compact sizes from 100mm x 180mm, suited to curtain walling, residential buildings, and storefronts.

Features and benefits

  • Slimline single-bank ventilation louvre at just 53mm deep, the shallowest in the CS range

  • High free area design for high airflow and low pressure drop

  • Blade and vertical section channels collect and drain rainwater

  • Class 1 extract and Class 2 entry airflow performance

  • Class C rain defence at 0m/s

  • Visible interlocking mullions align with façade elements, hidden mullions create an invisible vertical joint for a continuous blade appearance

  • Delivered to site as pre-fabricated modules for efficient installation

  • Optional glazing frame for captured or SSG glazing installations

Applications

  • High free area or high airflow extract applications

  • Mechanical extract ventilation systems, including data centres

  • Curtain walling, residential buildings, and storefronts with shallow or small openings

Dimensions

  • Depth: 53mm (standard frame), 129mm (glazing frame or hidden mullion)

  • Blade pitch: 48mm

  • Nominal thickness: 1.60mm

  • Max module height: 3600mm

  • Max module width: 3600mm

  • Min size: 100mm x 180mm

  • Weight: 12kg/m² (based on 2m x 2m module), max 80kg per unit recommended

Materials

Aluminium alloy 6063-T6

Finish

Mill finish

Polyester powder-coated matt (standard)

Polyester powder-coated gloss

Clear anodised

Colour anodised

Options and variations

  • Visible interlocking mullions or hidden mullions

  • Standard frame or glazing frame (captured or SSG glazing)

  • Bird/vermin guards - galvanised weld mesh (standard) or expanded aluminium

  • Insect mesh

  • Blanking - single-skin plates or insulated panels

  • Louvred doors and gates

  • Dampers

Performance

  • Rain defence: Class C at 0m/s

  • Airflow: Class 1 extract, Class 2 entry

  • Tested to EN 13030

  • Wind load: module dimensions based on 1.5kPa

Installation

  • Delivered as pre-fabricated modules

  • Horizontal joints: visible

  • Vertical joints: visible (interlocking mullion) or invisible (hidden mullion)

  • Blade supports may be required depending on module width and wind load

  • Standard frame includes typical cill pan (sized to project requirements)

Sustainability

  • Minimum 55% recycled aluminium content (pre- and post-consumer scrap)

Product accreditations

Tested to EN 13030 for rain defence and airflow performance

Cradle to Cradle Certified Bronze

Warranty

2-year product warranty Up to 30-year finish warranty (powder-coated or anodised)
