Media Cold water
Hot water
Suitability Heating systems
Valve type Thermostatic valves
Construction Stainless steel
Max. pressure (bar) 1
Min. temperature (deg. C) 37
Max. temperature (deg. C) 80

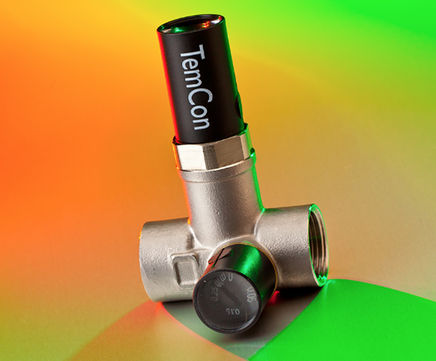

The TemCon thermostatic valve is designed for use in domestic hot water systems with circulation. It automatically controls the temperature of water circulating through the system, ensuring thermal balance throughout.

The valve can be adjusted to temperatures between 37°C and 65°C.

The TemCon thermostatic valve has a by-pass outside the thermal part of the valve, which makes it suitable for hot water installations with bacterial problems such as legionella. In these applications, the temperature of the water can be raised to between 70°C and 80°C at certain intervals.

Applications

The TemCon thermostatic valve is used in domestic hot water systems:

  • Taps
  • Showers

Features

  • The setting of the valves is stepless between 37°C and 65°C with an accuracy of +/- 2°C
  • Available in DN15 Female/Female and DN20 Female/Female and Male/Male
  • Factory pre-setting 57°C
  • By-pass for high temperature operation from 70°C to 80°C
  • Manual adjustment of by-pass
  • Automatic legionella treatment is possible by mounting the actuator kit on the by-pass in connection with the BMS control

Key benefits

  • Constructed in stainless steel AISI 316 for all parts in connection with water
  • Insulation supplied as standard for increased energy efficiency
  • The thermostatic element is out of contact with the circulating water which prevents scale problems
  • Each valve is calibrated individually
  • The thermostatic element can be disassembled without closing the water
  • Built-in magnifying glass to make reading of pre-setting easier

Technical data

Material
Valve body: stainless steel AISI 316
O-rings: EPDM
Springs: Stainless steel AISI 304
Element: wax
Plastic parts: POM, ABS, PC
Insulation jacket: EPS (max. 80°C)

Temperature range
37°C to 65°C

Accuracy
+/- 2°C at Dp<100 kPa

Max. Kv value
1.10m3/h

Kv value, open by by-pass
0.3m3/h

Recommended differential pressure
3kPa to 10kPa

Max. differential pressure
100 kPa

Max. temperature
100°C

Pressure rating
PN10

Approvals
VA Approval (Danish standard)
WRAS Approval (pending)

Accessories

Actuator kits
Insulation jacket - TemCon valves are delivered as standard with insulation for increased energy efficiency.
