Media Cold water
Hot water
Valve type Thermostatic valves
Construction Stainless steel
Max. pressure (bar) 1
Min. temperature (deg. C) 37
Max. temperature (deg. C) 65

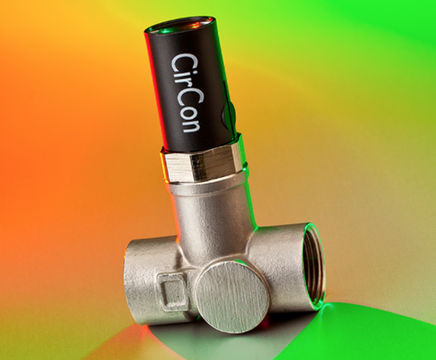

The CirCon thermostatic valve in stainless steel AISI 316 is designed for domestic hot water systems with circulation.

They automatically control the temperature of water that circulates through the valves, ensuring thermal balance throughout the system.

The CirCon thermostatic valve is adjustable on a scale between 37°C and 65°C.

Applications

The CirCon thermostatic valve is used in domestic hot water systems:

  • Taps
  • Showers

Features

  • The setting of the valves is stepless between 37°C and 65°C with an accuracy of +/- 2°C
  • Available in DN15 Female/Female and DN20 Female/Female and Male/Male
  • Factory pre-setting 52.5°C

Key benefits

  • Constructed in stainless steel AISI 316 for all parts in connection with water
  • Insulation supplied as standard for increased energy efficiency
  • The thermostatic element is out of contact with the circulating water which prevents scale problems
  • Each valve is calibrated individually
  • The thermostatic element can be disassembled without closing the water
  • Built-in magnifying glass to make reading of pre-setting easier

Technical data

Material
Valve body: stainless steel AISI 316
O-rings: EPDM
Springs: Stainless steel AISI 304
Element: wax
Plastic parts: POM, ABS, PC
Insulation jacket: EPS (max. 80°C)

Temperature range
37°C to 65°C

Accuracy
+/- 2°C at Dp<100 kPa

Max. Kv value
1.10m3/h

Recommended differential pressure
3kPa to 10kPa

Max. differential pressure
100 kPa

Pressure rating
PN10

Approvals
VA Approval (Danish standard)
WRAS Approval (pending)

Accessories

Insulation jacket - CirCon valves are delivered as standard with insulation for increased energy efficiency.


The CirCon thermostatic valve in stainless steel AISI 316 is designed for domestic hot water systems with circulation.

They automatically control the temperature of water that circulates through the valves, ensuring thermal balance throughout the system.

The CirCon thermostatic valve is adjustable on a scale between 37°C and 65°C.

Applications

The CirCon thermostatic valve is used in domestic hot water systems:

  • Taps
  • Showers

Features

  • The setting of the valves is stepless between 37°C and 65°C with an accuracy of +/- 2°C
  • Available in DN15 Female/Female and DN20 Female/Female and Male/Male
  • Factory pre-setting 52.5°C

Key benefits

  • Constructed in stainless steel AISI 316 for all parts in connection with water
  • Insulation supplied as standard for increased energy efficiency
  • The thermostatic element is out of contact with the circulating water which prevents scale problems
  • Each valve is calibrated individually
  • The thermostatic element can be disassembled without closing the water
  • Built-in magnifying glass to make reading of pre-setting easier

Technical data

Material
Valve body: stainless steel AISI 316
O-rings: EPDM
Springs: Stainless steel AISI 304
Element: wax
Plastic parts: POM, ABS, PC
Insulation jacket: EPS (max. 80°C)

Temperature range
37°C to 65°C

Accuracy
+/- 2°C at Dp<100 kPa

Max. Kv value
1.10m3/h

Recommended differential pressure
3kPa to 10kPa

Max. differential pressure
100 kPa

Pressure rating
PN10

Approvals
VA Approval (Danish standard)
WRAS Approval (pending)

Accessories

Insulation jacket - CirCon valves are delivered as standard with insulation for increased energy efficiency.
