Boiler output Steam
Applications Industrial
Energy sources Dual fuel
Natural gas
Oil
Accessories Blowdown systems
Condensate return systems
Feed water tanks
Output range (kW) 600-1000
Max. working pressure (bar) 10.34barg
Steam output (kg/h) 939-1565
Efficiency (% GCV) to 83%

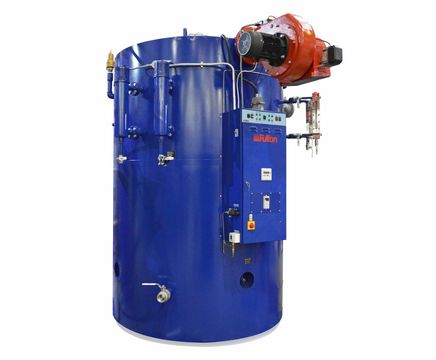

The Fulton VMP (vertical multiport boiler) incorporate a series of heavy-walled large-diameter schedule 80 flue pipes welded to the top and bottom heads in the pressure vessel; these pipes are surrounded by water.

The water-backed design speeds up boiler start up time and creates overall even heating throughout.

The Fulton VMP steam boilers have a small footprint, even heating and high efficiencies.

Key Features

  • Output: 400 kW - 1500 kW
  • Output: 626 kg/h - 2348 kg/h
  • Operating Pressure: 10.34 barg
  • Efficiencies: Up to 84%
  • No Tubes to Replace
  • Small Footprint
  • Compact Design


The Fulton VMP (vertical multiport boiler) incorporate a series of heavy-walled large-diameter schedule 80 flue pipes welded to the top and bottom heads in the pressure vessel; these pipes are surrounded by water.

The water-backed design speeds up boiler start up time and creates overall even heating throughout.

The Fulton VMP steam boilers have a small footprint, even heating and high efficiencies.

Key Features

  • Output: 400 kW - 1500 kW
  • Output: 626 kg/h - 2348 kg/h
  • Operating Pressure: 10.34 barg
  • Efficiencies: Up to 84%
  • No Tubes to Replace
  • Small Footprint
  • Compact Design
