Type Hot water meters
Installation Fixed
Suitability Commercial
Industrial
Residential

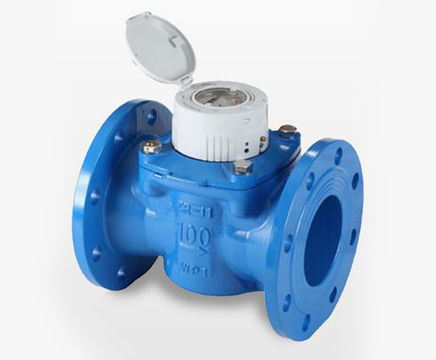

The WPH-N Woltmann Water Meter has been designed for domestic, commercial and industrial applications. These are used for high flow rates with a relative constant flow rate profile that needs to be measured. Due to the constructions and design it provides long term accuracy stability.

Available sizes

2″ / 2½″ / 3″ / 4″ / 5″ / 6″ /8″

Features

  • Direct reading on black digit rollers in cubic meters and spinning dials for smaller litres measurement
  • PN16 cast iron flanged connection for pressure up to 16 bar (232psi)
  • Cold water up to 30degC with safety up to 50degC
  • Available for pipe work DN50 2″ to DN500 20″
  • Suitable for horizontal, vertical or incline installation to class B
  • EEC approved to directive 75/33/EC up to DN200 8″
  • Optional pulse output for linking to batch controller or remote monitoring systems (i.e. counters, radio units etc)


The WPH-N Woltmann Water Meter has been designed for domestic, commercial and industrial applications. These are used for high flow rates with a relative constant flow rate profile that needs to be measured. Due to the constructions and design it provides long term accuracy stability.

Available sizes

2″ / 2½″ / 3″ / 4″ / 5″ / 6″ /8″

Features

  • Direct reading on black digit rollers in cubic meters and spinning dials for smaller litres measurement
  • PN16 cast iron flanged connection for pressure up to 16 bar (232psi)
  • Cold water up to 30degC with safety up to 50degC
  • Available for pipe work DN50 2″ to DN500 20″
  • Suitable for horizontal, vertical or incline installation to class B
  • EEC approved to directive 75/33/EC up to DN200 8″
  • Optional pulse output for linking to batch controller or remote monitoring systems (i.e. counters, radio units etc)
