Shape Circular
Suitability - floor finish Resilient floors
Suitability - floor construction Solid floors
Outlet angle Vertical
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel
Pipe diameter (mm) 110mm

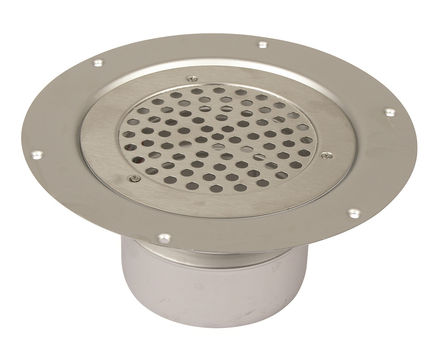

Light-duty 260.300.110 stainless steel drains are designed for flexible sheet flooring. They have a 110mm vertical outlet.

The clamping ring is 155mm in diameter and is secured to the drain with six flexible sheet flooring bolts.

Standard gratings are 155mm in diameter and 1mm thick, with a bright-annealed surface. They are secured to the clamping ring with three bolts. Optional 155 x 2mm and 155 x 3mm gratings are also available.

A removable water trap and filter screen or multiwater trap can be used in the drains.

Units weigh 0.65kg.


Light-duty 260.300.110 stainless steel drains are designed for flexible sheet flooring. They have a 110mm vertical outlet.

The clamping ring is 155mm in diameter and is secured to the drain with six flexible sheet flooring bolts.

Standard gratings are 155mm in diameter and 1mm thick, with a bright-annealed surface. They are secured to the clamping ring with three bolts. Optional 155 x 2mm and 155 x 3mm gratings are also available.

A removable water trap and filter screen or multiwater trap can be used in the drains.

Units weigh 0.65kg.
