Shape Rectangular
Suitability - floor finish Screeded floors
Suitability - floor construction Solid floors
Outlet angle Horizontal
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel
Pipe diameter (mm) 110mm

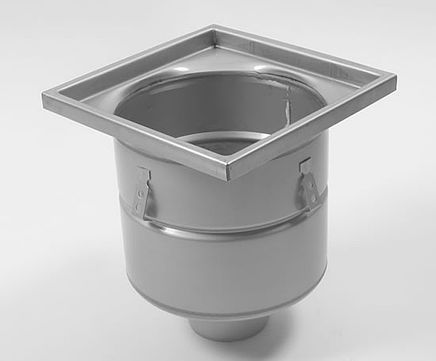

Industrial-grade 763.403.110 square-topped stainless steel floor drains are designed for tiled or concrete floors. They are suitable for use in commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

A horizontal 110mm push-fit spigot outlet is included as standard. The drains can be supplied with a removable water trap and either a silt basket or a filter basket as required.

The return edges are in-filled to offer greater rigidity and reduce the potential for voids and bacterial growth.

A range of gratings is available to suit most levels of traffic from, 1500 to 15,000kg.


Industrial-grade 763.403.110 square-topped stainless steel floor drains are designed for tiled or concrete floors. They are suitable for use in commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

A horizontal 110mm push-fit spigot outlet is included as standard. The drains can be supplied with a removable water trap and either a silt basket or a filter basket as required.

The return edges are in-filled to offer greater rigidity and reduce the potential for voids and bacterial growth.

A range of gratings is available to suit most levels of traffic from, 1500 to 15,000kg.


Interested in this product?
Call 01937 838000
OR



Downloads
  • 763.403.110T drain (dwg)
    763.403.110T drain (dwg)
    40KB
    Download
  • 763.403.110F drain (dwg)
    763.403.110F drain (dwg)
    44KB
    Download
  • 763.403.110 drain (dwg)
    763.403.110 drain (dwg)
    728KB
    Download
  • Industrial drain for concrete and tiled floors Type 760.403.110 Dta sheet
    Industrial drain for concrete and tiled floors Type 760.403.110 Dta sheet
    1pp 2.68MB
    Download
