Shape Circular
Suitability - floor finish Resilient floors
Screeded floors
Suitability - floor construction Solid floors
Outlet angle Vertical
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel
Pipe diameter (mm) 100mm

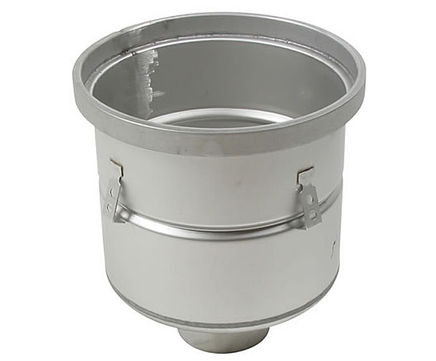

Industrial-grade 760.503.110 round-topped stainless steel floor drains are designed for use with resin or concrete floors. They are suitable for commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

A vertical 110mm push-fit spigot outlet is included as standard. The drains can be supplied with a removable water trap and either a silt basket or a filter basket as required.

The edges of the drains are solid stainless steel, which offers greater rigidity and good hygiene.

A range of gratings is available to suit most levels of traffic, from 1500 to 15,000kg.


Industrial-grade 760.503.110 round-topped stainless steel floor drains are designed for use with resin or concrete floors. They are suitable for commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

A vertical 110mm push-fit spigot outlet is included as standard. The drains can be supplied with a removable water trap and either a silt basket or a filter basket as required.

The edges of the drains are solid stainless steel, which offers greater rigidity and good hygiene.

A range of gratings is available to suit most levels of traffic, from 1500 to 15,000kg.


Interested in this product?
Call 01937 838000
OR



Downloads
  • 760.503.110T drain (dwg)
    760.503.110T drain (dwg)
    36KB
    Download
  • 760.503.110F drain (dwg)
    760.503.110F drain (dwg)
    44KB
    Download
  • 760.503.110 drain (dwg)
    760.503.110 drain (dwg)
    576KB
    Download
  • Industrial drain for resin floor Type no. 760.503.110 Data sheet
    Industrial drain for resin floor Type no. 760.503.110 Data sheet
    1pp 737.82KB
    Download
