Shape Square
Suitability - floor finish Screeded floors
Tiled floors
Suitability - floor construction Solid floors
Outlet angle Vertical
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel
Pipe diameter (mm) 110mm
Drainage capacity 2.8 litres/s

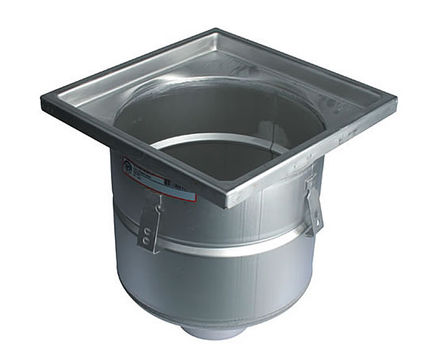

Industrial-grade 760.403.110 square-topped stainless steel drains are designed for tiled or concrete floors. They are suitable for use in commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

A vertical 110mm push-fit spigot outlet is included as standard and the drains can be supplied with a removable water trap and either a silt basket or a filter basket.

The return edges of the drain are in-filled to offer greater rigidity and reduce the potential for voids and bacterial growth.

A range of gratings is available to suit most levels of traffic from, 1500 to 15,000kg.


Industrial-grade 760.403.110 square-topped stainless steel drains are designed for tiled or concrete floors. They are suitable for use in commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

A vertical 110mm push-fit spigot outlet is included as standard and the drains can be supplied with a removable water trap and either a silt basket or a filter basket.

The return edges of the drain are in-filled to offer greater rigidity and reduce the potential for voids and bacterial growth.

A range of gratings is available to suit most levels of traffic from, 1500 to 15,000kg.


Interested in this product?
Call 01937 838000
OR



Downloads
  • 760.403.110 drain (dwg)
    760.403.110 drain (dwg)
    872KB
    Download
  • 760.403.110T drain (dwg)
    760.403.110T drain (dwg)
    40KB
    Download
  • 760.403.110F drain (dwg)
    760.403.110F drain (dwg)
    48KB
    Download
  • Industrial drain Type no. 670.403.110 Data sheet
    Industrial drain Type no. 670.403.110 Data sheet
    1pp 815.4KB
    Download
