TA-THERM thermostatic circulation valve for DHW systems
The TA-THERM thermostatic valve is used for automatic balancing in domestic hot water circulating systems, which are used in most large buildings to reduce the delay time for water to run hot at the tap. The TA-THERM valve is fitted in place of a conventional balancing valve and is made from AMETAL®, a dezincification-resistant alloy that
Click for full image

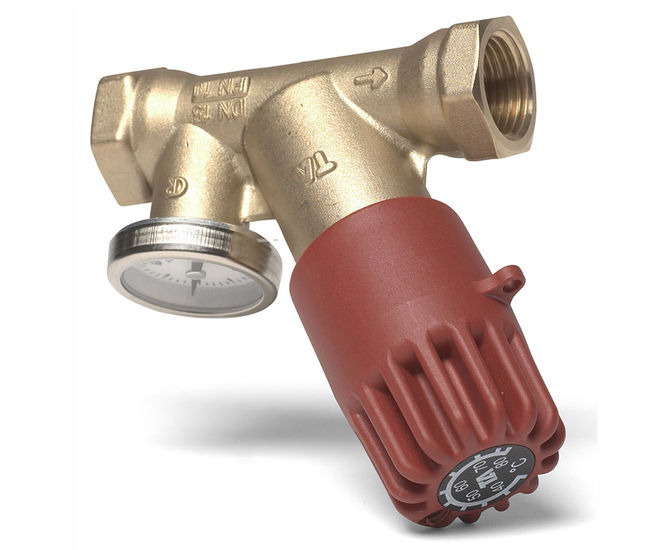

TA-THERM thermostatic circulation valve
Product details
Media
Cold water
Hot water
Potable water
Suitability
Heating systems
Valve type
Thermostatic valves
Max. pressure (bar)
10
Max. temperature (deg. C)
90
The TA-THERM thermostatic valve is used for automatic balancing in domestic hot water circulating systems, which are used in most large buildings to reduce the delay time for water to run hot at the tap.
The TA-THERM valve is fitted in place of a conventional balancing valve and is made from AMETAL®, a dezincification-resistant alloy that minimises the risk of leakage.
It has a stepless temperature setting that saves energy with a reduced delay time for hot water. It also has a manual shut-off function and thermometer for easy maintenance.
