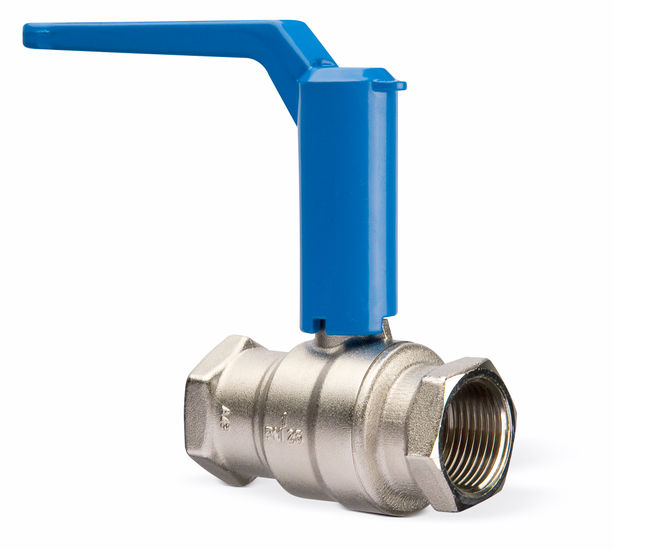

TA 500 ball valves
The TA 500 shut-off ball valve is suitable for heating, cooling and tap water systems. The valve is made from AMETAL®, a dezincification-resistant alloy that reduces the risk of leakage. The alloy is nickel plated and the handle is made from epoxy-painted die-cast aluminium. The valve has a teflon-coated ball for optimum maneuverability. A double
Click for full image
TA 500 ball valves
Product details
Media
Cold water
Hot water
Potable water
Suitability
Air conditioning
Heating systems
Valve type
Ball valves
Max. pressure (bar)
25
Min. temperature (deg. C)
-50
Max. temperature (deg. C)
185
The TA 500 shut-off ball valve is suitable for heating, cooling and tap water systems.
The valve is made from AMETAL®, a dezincification-resistant alloy that reduces the risk of leakage. The alloy is nickel plated and the handle is made from epoxy-painted die-cast aluminium.
The valve has a teflon-coated ball for optimum maneuverability. A double PTFE sealing further minimises the risk of leakage and ensures reliable operation.
The standard TA 500 is supplied with a lever, a spindle extension, a handle, or an assembled reduction unit. When using insulation, a spindle extension or a reduction unit should be used. The lever and reduction unit can be easily removed if necessary.
