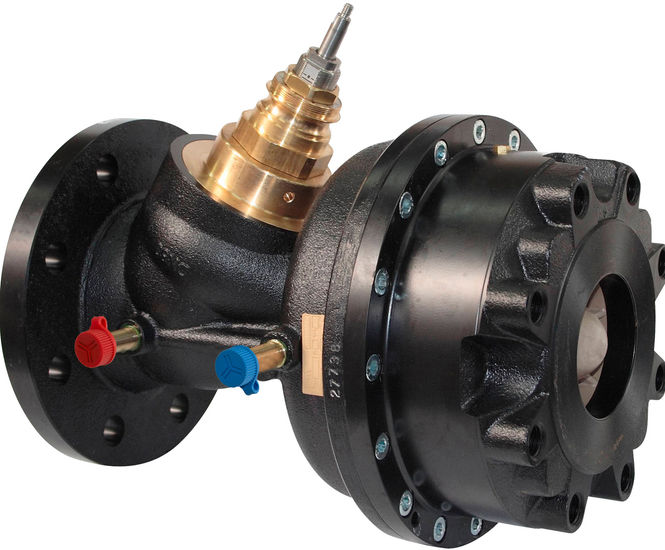

KTH 512 pressure independent balancing and control valve
Pressure independent balancing and control valve – DN 15-125. High-performing and compact, these pressure-independent control valves for variable flow heating and cooling systems are particularly effective in situations requiring high temperatures and/or pressure drops. They are also suitable for use on the secondary side in district heating and
Click for full image
KTM512 pressure independent balancing control valve
Product details
Media
Cold water
Hot water
Potable water
Suitability
Air conditioning
Heating systems
Valve type
Control valves
Construction
Ductile iron
Rubber
Max. pressure (bar)
16
Min. temperature (deg. C)
-10
Max. temperature (deg. C)
140
Pressure independent balancing and control valve – DN 15-125.
High-performing and compact, these pressure-independent control valves for variable flow heating and cooling systems are particularly effective in situations requiring high temperatures and/or pressure drops.
They are also suitable for use on the secondary side in district heating and comfort cooling systems.
Rust protection is assured due to the electrophoretically painted ductile iron body, while the plug delivers valve characteristic, suitable for modulating control.
