Detector type Smoke
Principal sensor Optical sensor
Number of sensors Single
Alarm type LED
Suitability Commercial
Industrial
Max. operating temperature (deg. C) 60

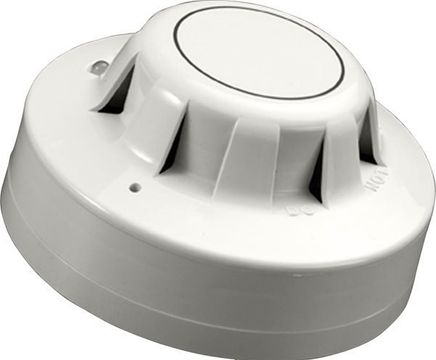

The Series 65 range of conventional detectors incorporates well-proven sensing technologies, together with advances in materials and electronics technology.

The optical smoke detector uses an internal pulsing LED and a photodiode at an obtuse angle. In the event of smoke entering the chamber, the light pulse from the LED will be scattered and registered by the photodiode. The detector will then enter the alarm state and the indicator LED lights up.

Features:
• Advanced electronic technology.
• Flashing LED option.
• Magnetic test switch option.
• Can be used on security systems when used with a relay base.
• Electrically and mechanically compatible with Series 60.
• Proven detection performance.


The Series 65 range of conventional detectors incorporates well-proven sensing technologies, together with advances in materials and electronics technology.

The optical smoke detector uses an internal pulsing LED and a photodiode at an obtuse angle. In the event of smoke entering the chamber, the light pulse from the LED will be scattered and registered by the photodiode. The detector will then enter the alarm state and the indicator LED lights up.

Features:
• Advanced electronic technology.
• Flashing LED option.
• Magnetic test switch option.
• Can be used on security systems when used with a relay base.
• Electrically and mechanically compatible with Series 60.
• Proven detection performance.
