Light drainage pump type ABS IP
The IP is a high-grade stainless steel pump for use with aggressive media in accordance with EN 12050-2. It is made from high grade stainless steel 1.4401 (AISI 316) aggressive media; clear and rain water; blockage-free pumping of liquids that contain a high proportion of solid or fibrous matter; dewatering of buildings and sites; emptying or
Click for full image

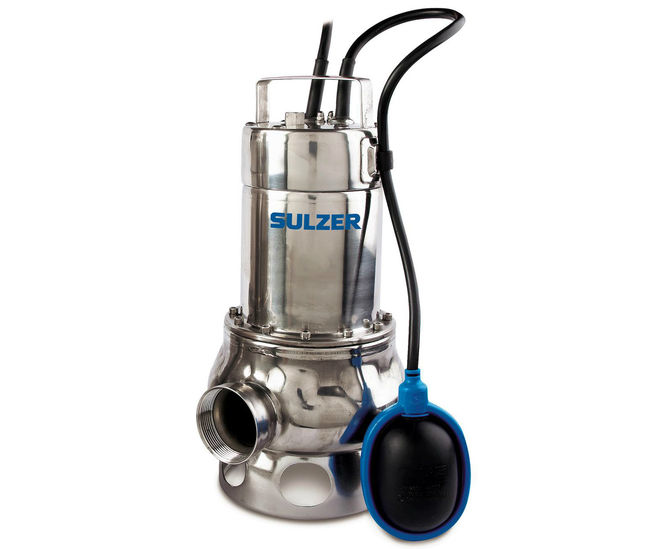

ABS IP light drainage pump
Suitability
Clean water
Dirty water
Housing
Stainless steel
Installation
Submersible
Power supply (V / Hz)
400 3~ or 220–240 1~; 50Hz
Max. flow
35m3/h
Max. head
14m
Max. liquid temperature (deg. C)
40°C (60°C for intermittent usage)
The IP is a high-grade stainless steel pump for use with aggressive media in accordance with EN 12050-2.
It is made from high grade stainless steel 1.4401 (AISI 316)
Applications
aggressive media
clear and rain water
Blockage-free pumping of liquids that contain a high proportion of solid or fibrous matter
Dewatering of buildings and sites
Emptying or filling containers
septic tanks, emptying of flooded cellars and drainage applications
Features
Thermal sensors
Mechanical silicon carbide seal on the medium side; oil-lubricated lip seal on the motor side
Protection type IP 68
Stainless steel rotor shaft supported in lubricated-for-life ball bearings
