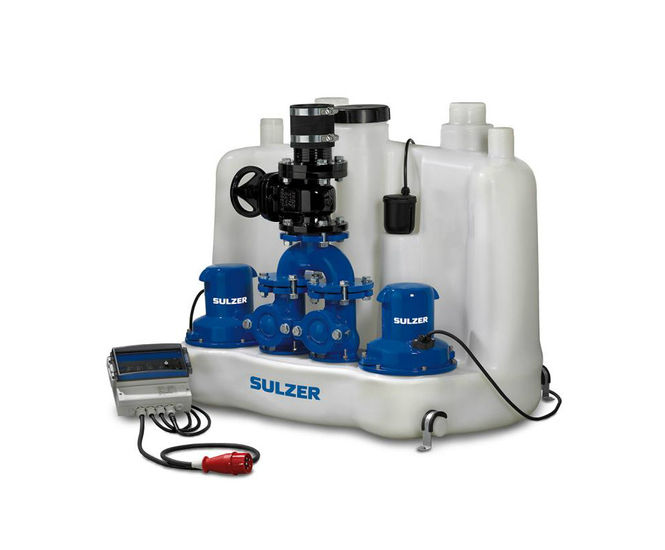

The Sanimat 2002 is a flood-proof double lifting station for automatic sewage pumping from areas below the backwash level. The system is in accordance with EN 12050-1.

Applications

  • Domestic houses
  • Large public buildings
  • Commercial developments
  • New build
  • Refurbishment applications

Features

  • Plug-in unit with CEE plug-and-phase sequence changeover facility.
  • Easily transported and fitted. Compact dimensions allow access through a standard door opening.
  • Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high level water alarm.
  • Trouble-free maintenance as the motor housing can be simply removed.
  • Vortex impeller for reliable pumping of both faecal and faecal-free sewage.
  • Option of 2- or 4-pole motors.
  • Direct toilet connection is possible in the case of wall-mounted WC units.
  • One variable inlet (DN 150) with 90° elbow, two horizontal (DN 150), and five vertical (2 x DN 100/150, 2 x DN 70, 1 x DN 40). One DN 70 port is needed as a vent line. DN 40 port is suitable for the connection of a hand membrane pump.
  • Discharge flange DN 80, as well as flanged socket with 4 sleeve and clips (for discharge pipe DN80/100).
  • Sloping container floor that prevents deposits.
  • Integrated valve system consisting of two non-return ball valves.
  • Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting a battery.
  • Maximum temperature of the media is 40°C for continuous operation; up to 60 °C for intermittent (maximum of 5 minutes).
