Boiler output Steam
Applications Medical
Energy sources Electric
Installation Containerised
Floor mounted
Skid mounted
Output range (kW) 18 - 72
Max. working pressure (bar) 10.34
Steam output (kg/h) 29 - 115
Dimensions (w x h x d) 760 x 1950 x 1100
Weight (kg) 390 / 560

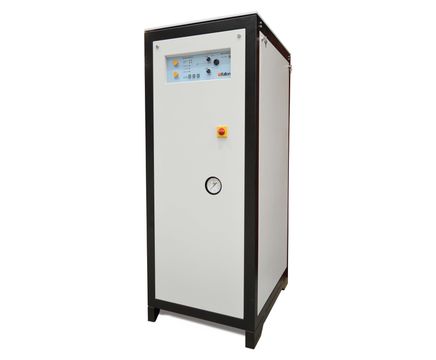

The EFS (Electric Flash Steam) is a fully automatic, self-contained steam boiler which incorporates an integrated feed water tank and feed water pump.

It is able to meet fluctuations in steam loads and meets the short-term peak flow rates of a typical steriliser cycle.

The boiler is designed to reduce entrainment of water droplets to a minimum and, as a result, produce high quality, contaminant-free steam.

Key Features

  • 7 Models: 18kW – 100kW
  • Output: 29 kg/h – 153 kg/h (F&A 100°C)
  • Operating Pressure: 10.34 barg
  • Integrated Feedwater Tank (EP18 - EP72)
  • Integrated Feedwater Pump
  • Removable Panels for Easy Servicing
