Boiler output Steam
Applications Commercial
Medical
Boiler type Wetback boilers
Energy sources Electric
Installation Containerised
Floor mounted
Skid mounted
Accessories Blowdown systems
Condensate return systems
Feed water tanks
Output range (kW) 9 - 17.5
Max. working pressure (bar) 5.8
Steam output (kg/h) 14 - 29
Dimensions (w x h x d) 600 x 750 x 760
Weight (kg) 120 shipping, 162 operational



A compact high efficiency electric steam boiler, designed for applications with small steam demands, such as laboratories, clothing industries, or food processing.

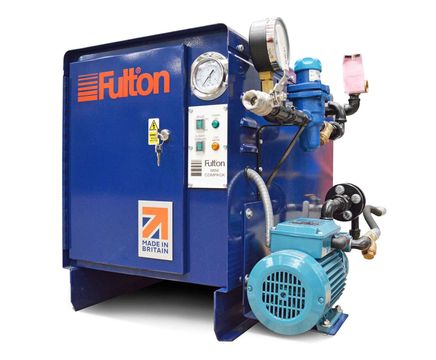

The Fulton Mini Compack is the smallest, most compact electric steam boiler in the range and is designed to fit into small spaces, e.g. under a bench or desk.

Key Features

  • 4 Models: 9kW - 17.5kW
  • 14 kg/h - 28 kg/h (F&A 100°C)
  • Operating Pressure 5.8 barg
  • Long Life ‘Incoloy’ Elements
  • Feed Pump Incorporated
  • Robust Epoxy/Polyester Coated Finish
  • Five Year Guarantee on Pressure Vessel


A compact high efficiency electric steam boiler, designed for applications with small steam demands, such as laboratories, clothing industries, or food processing.

The Fulton Mini Compack is the smallest, most compact electric steam boiler in the range and is designed to fit into small spaces, e.g. under a bench or desk.

Key Features

  • 4 Models: 9kW - 17.5kW
  • 14 kg/h - 28 kg/h (F&A 100°C)
  • Operating Pressure 5.8 barg
  • Long Life ‘Incoloy’ Elements
  • Feed Pump Incorporated
  • Robust Epoxy/Polyester Coated Finish
  • Five Year Guarantee on Pressure Vessel
