The MCmultizone system uses compressed air to atomise the water into very fine droplets that evaporate spontaneously in the air, humidifying and cooling it. In fact, evaporation occurs by absorbing sensible heat from the air that, as a consequence, is cooled.

Main components

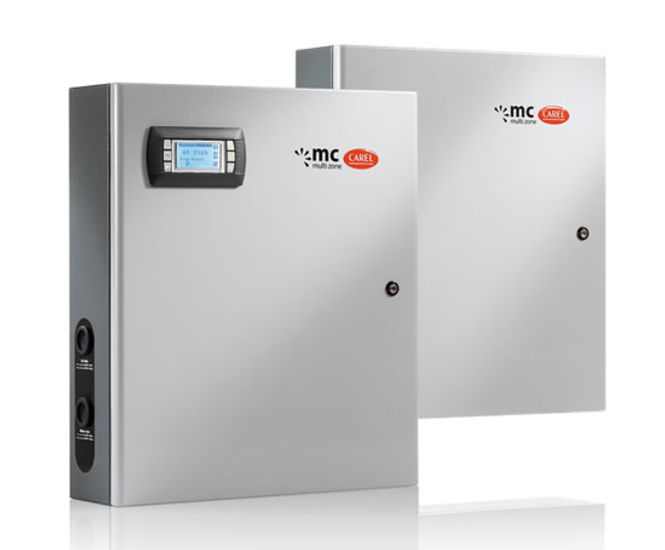

  • Control cabinet, fitted with the electronic controller.
  • Special atomising nozzles which are installed in the AHU or duct.
  • UV steriliser lamp and protective filters.

The MCmultizone adiabatic humidification system is ideal for the humidification of medium / large industrial environments and air handling units. The new multizone feature allows 1 master cabinet to control up to 6 independent zones or slaves.

Features

  • Special atomising nozzles made from AISI 316 stainless steel - self cleaning.
  • Capacity 60 to 230kg/hr.
  • Master-slave layout for multizone applications.
  • Custom manifolds for installation in the duct (optional).
  • UV steriliser lamp and protective filters (optional).
  • Automatic emptying of the water line whenever the unit stops.
  • Automatic periodical washing of the water line when the unit is not operating.
  • 10µm average droplet size.
  • Pressure sensor at the end of the line - automatic pressure balance.
