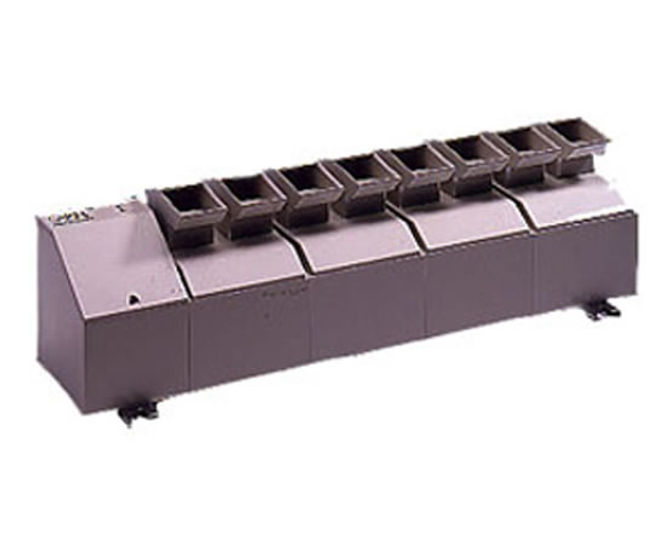

humisonic humidifier - duct installations
humisonic is an ultrasonic piezoelectric humidifier that has been designed for air handling and air conditioning units with low-energy consumption. A piezoelectric transducer immersed into water converts electricity into high-frequency mechanical vibrations which generates compression and depression waves where the water is forced to vaporise at
humisonic is an ultrasonic piezoelectric humidifier that has been designed for air handling and air conditioning units with low-energy consumption.
A piezoelectric transducer immersed into water converts electricity into high-frequency mechanical vibrations which generates compression and depression waves where the water is forced to vaporise at low temperature and pressure thus producing an extremely fine droplet spray.
Utrasonic units produce the smallest droplet size (3µm - 5 µm) for any atomising humidifier and consequently have excellent evaporation distances and efficiency. This allows very high precision from an adiabatic product.
Features
High precision adiabatic control +/- 1%rh (subject to accurate temperature control, system design and sensor accuracy).
Piezoelectric transducers (vary according to the maximum water flow).
Fill valve.
Fill water float switch.
Protection float switch in the event of an absence of water.
Thermal protection in the event of overheating.
4m electric cable for connection to the electrical panel.
