Shape Square
Suitability - floor finish Screeded floors
Tiled floors
Suitability - floor construction Suspended floors
Outlet angle Horizontal
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel
Pipe diameter (mm) 50mm
Drainage capacity 0.7 litres/s

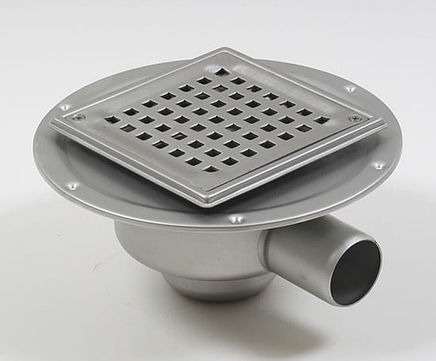

The BLÜCHER light duty 314.300.050 is an adjustable drain for concrete / tiled floors with a horizontal 50mm outlet. It is a low-profile drain with a membrane flange.

The upper part of the outlet is height-adjustable, can be rotated 360° and tilted at 10° to the lower part. The membrane flange is also height adjustable.

Material: stainless steel grade AISI 304 or AISI 316L.
Sealing ring: EPDM rubber
Weight: 1.75kg

The drain comes with a square grating as standard, which measures 140x140x2mm and has screw fixing. Several other styles of removable grating can be specified.

A water trap or multi water trap can be used in the drain. A filter screen can be used in drains when the removable water trap is used.


The BLÜCHER light duty 314.300.050 is an adjustable drain for concrete / tiled floors with a horizontal 50mm outlet. It is a low-profile drain with a membrane flange.

The upper part of the outlet is height-adjustable, can be rotated 360° and tilted at 10° to the lower part. The membrane flange is also height adjustable.

Material: stainless steel grade AISI 304 or AISI 316L.
Sealing ring: EPDM rubber
Weight: 1.75kg

The drain comes with a square grating as standard, which measures 140x140x2mm and has screw fixing. Several other styles of removable grating can be specified.

A water trap or multi water trap can be used in the drain. A filter screen can be used in drains when the removable water trap is used.
