Shape Square
Suitability - floor finish Screeded floors
Tiled floors
Suitability - floor construction Solid floors
Outlet angle Horizontal
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel
Pipe diameter (mm) 50mm

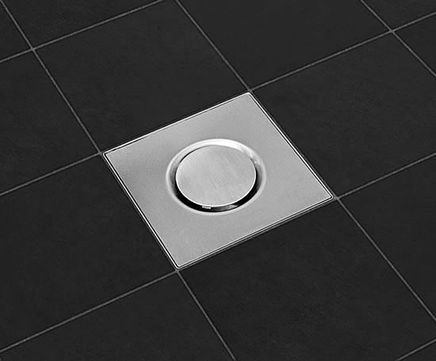

The BLÜCHER light duty 114.300.050 is an adjustable drain for concrete/tiled floors, with a horizontal 50mm outlet. It is a low-profile drain without a membrane flange.

The upper part of the outlet is height-adjustable, can be rotated 360° and tilted at 10° to the lower part.

Material: Stainless steel grade AISI 304 or AISI 316L.
Sealing ring: EPDM rubber
Weight: 1.3kg.

The drain comes with a square grating as standard, which measures 140x140x2mm and has screw fixing. Several other styles of removable grating can be specified.

A removable, easy-clean water trap or multi water trap can be used in the drain along with a filter screen.


The BLÜCHER light duty 114.300.050 is an adjustable drain for concrete/tiled floors, with a horizontal 50mm outlet. It is a low-profile drain without a membrane flange.

The upper part of the outlet is height-adjustable, can be rotated 360° and tilted at 10° to the lower part.

Material: Stainless steel grade AISI 304 or AISI 316L.
Sealing ring: EPDM rubber
Weight: 1.3kg.

The drain comes with a square grating as standard, which measures 140x140x2mm and has screw fixing. Several other styles of removable grating can be specified.

A removable, easy-clean water trap or multi water trap can be used in the drain along with a filter screen.


Interested in this product?
Call 01937 838000
OR



Downloads
  • Product catalogue for floor drains
    Product catalogue for floor drains
    3.99MB
    Download
  • 114.300.050 domestic shower drain (dwg)
    114.300.050 domestic shower drain (dwg)
    704K
    Download
  • UK drainage catalogue interactive PDF
    UK drainage catalogue interactive PDF
    4.04MB
    Download
  • Adjustable square shower drain Type no. 114.300.050 Data sheet
    Adjustable square shower drain Type no. 114.300.050 Data sheet
    1pp 2.13MB
    Download



Enquire
