BLUCHER UK




Shape Circular
Suitability - floor finish Resilient floors
Suitability - floor construction Solid floors
Outlet angle Horizontal
Trapped / untrapped Trapped
Body material Stainless steel
Pipe diameter (mm) 50mm




The BLÜCHER light duty 214.300.050 is a low-profile, adjustable drain for flexible sheet flooring, with a horizontal 50mm outlet.

The upper part of the outlet is height-adjustable, can be rotated 360° and tilted at 10° to the lower part.

The clamping ring is 155mm in diameter, and is secured to the drain with 6 bolts, suitable for flexible sheet flooring of 1-2mm thickness.

Material: stainless steel grade AISI 304 or AISI 316L.
Sealing ring: EPDM rubber
Clamping ring: polypropylene
Weight: 1.35kg.

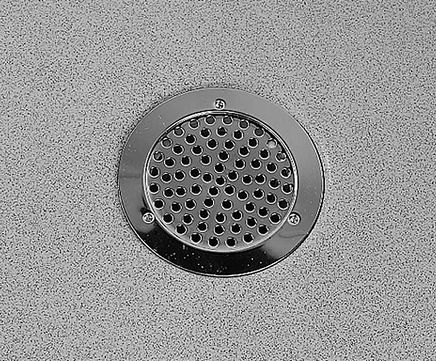

Standard gratings are 155mm in diameter and 1mm thick, with a bright-annealed surface. They are secured to the clamping ring with three bolts - type no. 620.155.011. Optional 155 x 2mm and 155 x 3mm gratings are also available.

A removable water trap or multi water trap can be used in the drain. A filter screen can be used in drains when the removable water trap is used.


The BLÜCHER light duty 214.300.050 is a low-profile, adjustable drain for flexible sheet flooring, with a horizontal 50mm outlet.

The upper part of the outlet is height-adjustable, can be rotated 360° and tilted at 10° to the lower part.

The clamping ring is 155mm in diameter, and is secured to the drain with 6 bolts, suitable for flexible sheet flooring of 1-2mm thickness.

Material: stainless steel grade AISI 304 or AISI 316L.
Sealing ring: EPDM rubber
Clamping ring: polypropylene
Weight: 1.35kg.

Standard gratings are 155mm in diameter and 1mm thick, with a bright-annealed surface. They are secured to the clamping ring with three bolts - type no. 620.155.011. Optional 155 x 2mm and 155 x 3mm gratings are also available.

A removable water trap or multi water trap can be used in the drain. A filter screen can be used in drains when the removable water trap is used.
