BLUCHER UK




Shape Circular
Suitability - floor finish Resilient floors
Suitability - floor construction Solid floors
Outlet angle Horizontal
Trapped / untrapped Trapped
Body material Stainless steel
Pipe diameter (mm) 110mm

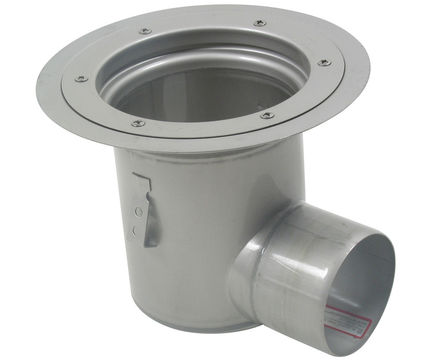

The Industrial 200 is a circular stainless steel floor drain suitable for use in commercial applications including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

It is suitable for flexible sheet floor finishes and is supplied without a membrane flange.

A horizontal 110mm push fit spigot outlet is included. The drain can also be supplied with a removable water trap and either a silt or filter basket.

Return edges are in-filled which offer greater rigidity and reduces the potential for voids and for bacterial growth.

A range of gratings is available to suit most traffic from 1500 to 15000kg.


The Industrial 200 is a circular stainless steel floor drain suitable for use in commercial applications including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

It is suitable for flexible sheet floor finishes and is supplied without a membrane flange.

A horizontal 110mm push fit spigot outlet is included. The drain can also be supplied with a removable water trap and either a silt or filter basket.

Return edges are in-filled which offer greater rigidity and reduces the potential for voids and for bacterial growth.

A range of gratings is available to suit most traffic from 1500 to 15000kg.





Downloads
  • 763.602.110 drain (dwg)
    763.602.110 drain (dwg)
    1.4MB
    Download
  • 763.602.110 industrial drain (dxf)
    763.602.110 industrial drain (dxf)
    1.4MB
    Download
  • Industrial circular drain, vinyl floors, Type 763.602.110 Data sheet
    Industrial circular drain, vinyl floors, Type 763.602.110 Data sheet
    1pp 989.91KB
    Download
  • Stainless steel floor drainage systems
    Stainless steel floor drainage systems
    24pp 2.5MB
    Download
