Shape Circular
Suitability - floor finish Resilient floors
Suitability - floor construction Solid floors
Outlet angle Horizontal
Trapped / untrapped Untrapped
Body material Stainless steel
Pipe diameter (mm) 110mm

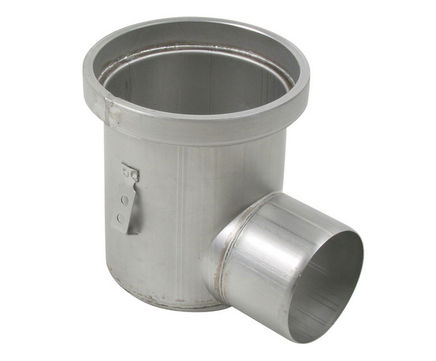

This circular stainless steel floor drain is suitable for use in commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings. It is suitable for resin or epoxy-coated floors.

The drain has a horizontal 110mm push-fit spigot outlet and can be supplied with a removable water trap and either a sand bucket or filter basket.

Return edges are in-filled which whilst offering greater rigidity also reduces the potential for voids and potential for bacterial growth.

A range of gratings is available to suit most traffic from 1,500 to 15,000kg.


This circular stainless steel floor drain is suitable for use in commercial applications, including kitchens, plant rooms, food production facilities and pharmaceutical buildings. It is suitable for resin or epoxy-coated floors.

The drain has a horizontal 110mm push-fit spigot outlet and can be supplied with a removable water trap and either a sand bucket or filter basket.

Return edges are in-filled which whilst offering greater rigidity also reduces the potential for voids and potential for bacterial growth.

A range of gratings is available to suit most traffic from 1,500 to 15,000kg.
