BLUCHER UK




Shape Square
Suitability - floor finish Screeded floors
Suitability - floor construction Solid floors
Outlet angle Vertical
Trapped / untrapped Trapped
Untrapped
Body material Stainless steel
Pipe diameter (mm) 110mm
Drainage capacity 3 litres/s

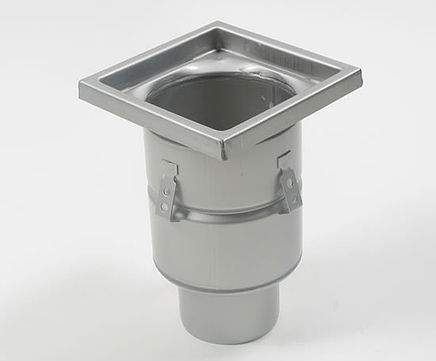

The Industrial 200 is a square-topped stainless steel floor drain suitable for use in commercial applications including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

It is suitable for tiled or concrete floor finishes.

A vertical 110mm push fit spigot outlet is included. The drain can also be supplied with a removable water trap and either a silt or filter basket.

Return edges are in-filled which offer greater rigidity and reduces the potential for voids and for bacterial growth.

A range of gratings is available to suit most traffic from 1500 to 15000kg.


The Industrial 200 is a square-topped stainless steel floor drain suitable for use in commercial applications including kitchens, plant rooms, food production facilities and pharmaceutical buildings.

It is suitable for tiled or concrete floor finishes.

A vertical 110mm push fit spigot outlet is included. The drain can also be supplied with a removable water trap and either a silt or filter basket.

Return edges are in-filled which offer greater rigidity and reduces the potential for voids and for bacterial growth.

A range of gratings is available to suit most traffic from 1500 to 15000kg.





Downloads
  • 760.402.110 drain (dwg)
    760.402.110 drain (dwg)
    120K
    Download
  • 760.402.110 industrial drain (dxf)
    760.402.110 industrial drain (dxf)
    660K
    Download
  • BLÜCHER® 760.403.110 drain (dwg)
    BLÜCHER® 760.403.110 drain (dwg)

    Download
  • BLÜCHER® 760.403.110 industrial drain (dfx)
    BLÜCHER® 760.403.110 industrial drain (dfx)

    Download
  • Industrial square drain, concrete and tiled floors, Type 760.402.110 Data sheet
    Industrial square drain, concrete and tiled floors, Type 760.402.110 Data sheet
    1pp 3.44MB
    Download
