System type Waste
Material Stainless steel
Joining method Push-fit
Product accreditation BBA certified
Diameter (mm) 40, 50, 75, 82, 110, 125, 160, 200, 250, 315mm

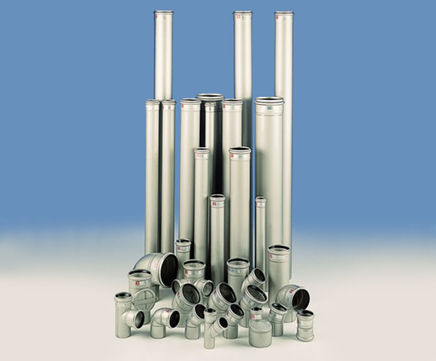

BLÜCHER® EuroPipe is a stainless steel push-fit waste pipework system for use in the drainage of soil, wastewater, rainwater and process wastewater. EuroPipe is a complete system of pipes, bends and fittings in diameters from 40-315mm. EuroPipe is quick and easy to install.

BBA approval 86/1751 for domestic, commercial and public building drainage.

  • Stainless steel push-fit pipework
  • Diameters from 40-315mm
  • Lengths from 150-6000mm
  • Strong and lightweight
  • Quick and easy to install
  • Fire resistant
  • Corrosion resistant
  • Hygienic

Applications

EuroPipe push-fit waste pipework is suitable for the drainage of:

  • Soil and wastewater
  • Rainwater
  • Process wastewater

Stainless steel BLÜCHER® EuroPipe with EPDM sealing rings is suitable for most applications and can be used in both above ground and below ground situations. Being resistant to corrosion, it is widely used in the following sectors:

  • Commercial buildings
  • Healthcare
  • Food and drink processing
  • Catering and hospitality
  • Chemicals and pharmaceuticals
  • Laboratories

Technical data

Outside diameters
40, 50, 75, 82, 110, 125, 160, 200, 250 and 315mm

EuroPipe 315mm diameter pipe is the largest diameter pipe with the highest flow capacity in the market.

Pipe lengths
Standard pipe is available in a range of lengths from 150-6000mm, reducing the need for cutting. Can be cut on site if required.

Manufacture and composition

Pipework and fittings
Conform to BS EN 1124 Pt 1 and 2.

Manufactured from high-grade austenitic stainless steel in grades:
– AISI 304 suitable for most environments
– AISI 316L suitable for corrosive environments such as marine installations or other aggressive locations.

Sealing rings
Conform to BS 2494: 1986 (Materials for elastomeric joints for pipework and pipelines).

Sealing rings are moulded from EPDM synthetic rubber, specially designed for the BLÜCHER® EuroPipe ring groove.

Working temperature range for EPDM sealing rings is -40° to +100° C.

Finish
All pipes and fittings are chemically descaled (acid pickled) to enhance natural corrosion resistance and provide a uniform aesthetically pleasing matt silver finish.

Enhanced finishes if required (electro-polished, powder-coated etc) at extra cost.

Installation

In most cases, installation can be handled by one or two people, and assembly can be carried out without any welding. Combined labour and material savings can be considerable when compared with traditional 'lightweight' cast iron pipe systems.


BLÜCHER® EuroPipe is a stainless steel push-fit waste pipework system for use in the drainage of soil, wastewater, rainwater and process wastewater. EuroPipe is a complete system of pipes, bends and fittings in diameters from 40-315mm. EuroPipe is quick and easy to install.

BBA approval 86/1751 for domestic, commercial and public building drainage.

  • Stainless steel push-fit pipework
  • Diameters from 40-315mm
  • Lengths from 150-6000mm
  • Strong and lightweight
  • Quick and easy to install
  • Fire resistant
  • Corrosion resistant
  • Hygienic

Applications

EuroPipe push-fit waste pipework is suitable for the drainage of:

  • Soil and wastewater
  • Rainwater
  • Process wastewater

Stainless steel BLÜCHER® EuroPipe with EPDM sealing rings is suitable for most applications and can be used in both above ground and below ground situations. Being resistant to corrosion, it is widely used in the following sectors:

  • Commercial buildings
  • Healthcare
  • Food and drink processing
  • Catering and hospitality
  • Chemicals and pharmaceuticals
  • Laboratories

Technical data

Outside diameters
40, 50, 75, 82, 110, 125, 160, 200, 250 and 315mm

EuroPipe 315mm diameter pipe is the largest diameter pipe with the highest flow capacity in the market.

Pipe lengths
Standard pipe is available in a range of lengths from 150-6000mm, reducing the need for cutting. Can be cut on site if required.

Manufacture and composition

Pipework and fittings
Conform to BS EN 1124 Pt 1 and 2.

Manufactured from high-grade austenitic stainless steel in grades:
– AISI 304 suitable for most environments
– AISI 316L suitable for corrosive environments such as marine installations or other aggressive locations.

Sealing rings
Conform to BS 2494: 1986 (Materials for elastomeric joints for pipework and pipelines).

Sealing rings are moulded from EPDM synthetic rubber, specially designed for the BLÜCHER® EuroPipe ring groove.

Working temperature range for EPDM sealing rings is -40° to +100° C.

Finish
All pipes and fittings are chemically descaled (acid pickled) to enhance natural corrosion resistance and provide a uniform aesthetically pleasing matt silver finish.

Enhanced finishes if required (electro-polished, powder-coated etc) at extra cost.

Installation

In most cases, installation can be handled by one or two people, and assembly can be carried out without any welding. Combined labour and material savings can be considerable when compared with traditional 'lightweight' cast iron pipe systems.
