Type Storage water heaters
Characteristics Pre-plumbed
Unvented
Vented
Direct / indirect heat Direct heat
Indirect heat
Cylinder construction Copper
Insulation material Polyurethane
Product accreditation CHeSS best practice
Clear Skies approved
Suitability Commercial
Industrial
Storage capacity (litres) 3000

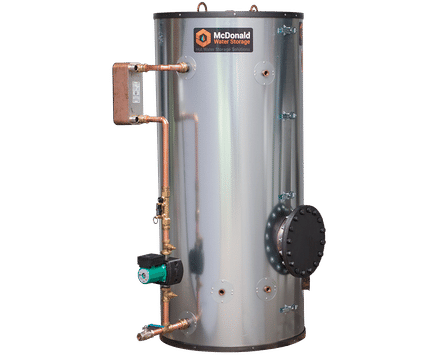

The PLATEflow system comprises a brazed plate heat exchanger (PHE), pre-piped and mounted on a buffer vessel.

It is designed to supply hot water in situations where demand can vary over the course of a day, e.g. hotels, hospitals, factories etc. The PLATEflow system effectively decreases the amount of stored hot water required, while still delivering peak flow rates as demanded.

Supplied pre-assembled to the required specification, the PLATEflow significantly reduces installation and commissioning time. PLATEflow provides constant hot water in a compact installation.

It can be supplied as either a vented, tank fed unit, or suitable for unvented applications when fed from the mains or a boosted cold water supply. The shell is manufactured to BS 853. Specifiers have the reassurance of buffer vessel backup.

The copper water storage tank provides the best anti-bacterial properties in a proven, long-lasting material. It is sustainable, being 100% recyclable.
