Media pumped Grey water
Suitability Commercial / leisure
Residential, multiple dwellings
Residential, single dwellings
Installation Above ground
No. of pumps Multiple
Pump type Vortex
Power supply Single phase
Enclosure construction GRP
Flow capacity (litres/s) 5.5
Discharge size 1.5"
Max. head (m) 10
Max. horizontal output (m) 70
Storage capacity 160 litres
Dimensions (mm) 600mm long x 600mm wide x 450mm high

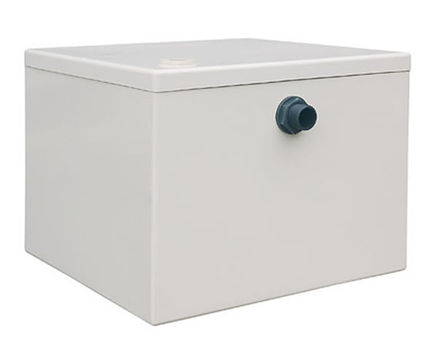

The AutoFlush HT Twin is a fully automatic, high-temperature, wastewater system suitable for pumping hot water containing particles to a higher level when gravity drainage is not possible or economical to install.

The system is suitable for installing at the initial building stage or for retrofitting to existing buildings. It can accept waste connections from commercial sinks, washing machines or dishwashers.

It consists of an odour-tight GRP tank with two built-in, automatic, high-temperature, vortex submersible pumps, operated using a control panel.

It can accept water up to 90°C, which makes it very versatile in commercial applications.


The AutoFlush HT Twin is a fully automatic, high-temperature, wastewater system suitable for pumping hot water containing particles to a higher level when gravity drainage is not possible or economical to install.

The system is suitable for installing at the initial building stage or for retrofitting to existing buildings. It can accept waste connections from commercial sinks, washing machines or dishwashers.

It consists of an odour-tight GRP tank with two built-in, automatic, high-temperature, vortex submersible pumps, operated using a control panel.

It can accept water up to 90°C, which makes it very versatile in commercial applications.
