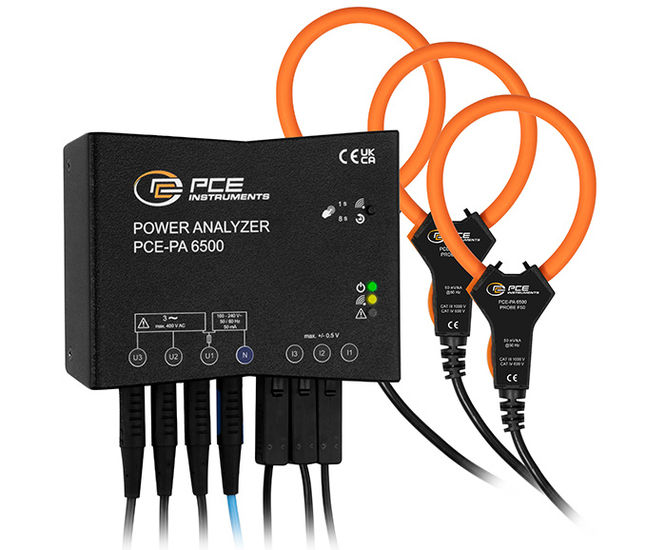

The PCE-PA 6500 series of power quality analysers measures current and voltage values using the connected current transformers and test leads. From this, the active, apparent and reactive power are determined and transmitted to the measuring platform every second via Wi-Fi. The data is then filed historically on the power quality analyser / power analyser, processed graphically and can be analysed or exported.

Features

  • Alternating voltage: 40 ... 400 V

  • Alternating current:
    Model R11: 0 ... 80 A
    Model F150: 3 ... 4800 A
    Model F50: 2 ... 1250 A

  • Resolution: 0.01 V / 0.01 A

  • Active, apparent and reactive power

  • Electrical energy in Wh

  • Incl. app for Android

  • 32GB internal memory

  • Magnetic measuring adaptor
