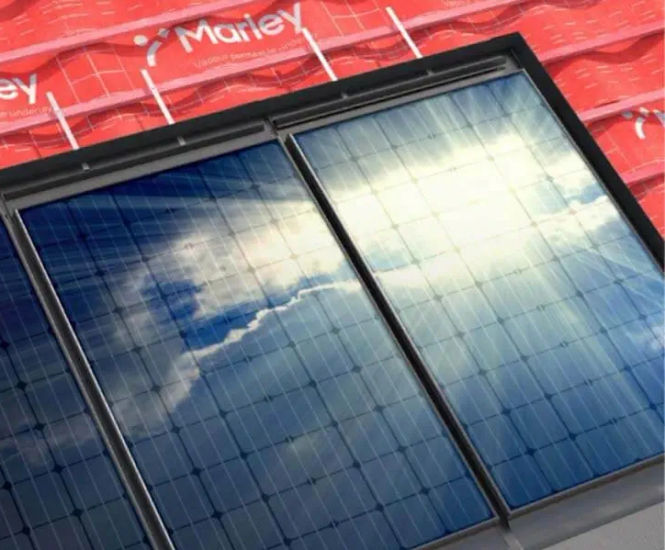

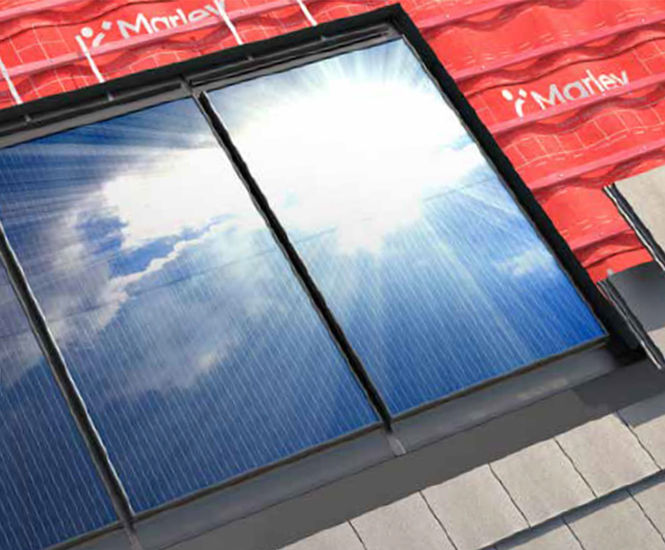

Marley SolarTile® is a roof-integrated solar PV tile system designed to replace standard roof tiles or slates, generating electricity while acting as a weatherproof roof covering. Panels fit flush with the roof for a sleek appearance and are suitable for new builds or extensions, with options up to 410Wp per panel.

  • Roof-integrated solar PV tile system for electricity generation and weatherproofing

  • Flush fit design enhances kerb appeal and prevents bird nesting

  • Quick installation with colour-coded flashing kits

  • Tested for wind and fire performance

  • BBA certified and CCPI approved for product reliability and information clarity

  • 25-year panel efficiency guarantee; 15-year system warranty when used with Marley Roof System

  • Environmental Product Declaration (EPD) available

Applications

  • Residential new build roofs

  • Extensions to existing buildings

  • Projects requiring integrated solar PV solutions

  • Designs seeking a flush, low-profile solar installation

  • Roofs needing both weather protection and renewable energy generation

Dimensions

  • Widths 1000, 1134mm

  • Heights 1686, 1722mm

  • Aperture area 1.662, 1.885m²

  • Weight 21.7, 25kg

  • Thickness 69, 70mm

Performance

  • Panel output up to 410Wp

  • Assessed for wind and fire resistance

Installation

  • Fixed directly onto battens to replace roof tiles or slates

  • Colour-coded flashing kits for simplified installation

  • Suitable for new roofs or extensions

Accreditations

  • BBA certified for SolarTile® 410 PV panels and flashings

  • CCPI approved product

  • Meets NHBC Technical Requirements

Warranty

  • 25-year panel efficiency guarantee

  • 15-year system warranty when used with complete Marley Roof System

Sustainability

Environmental Product Declaration (EPD) available

Panel Options

NEW! 445Wp All Glass Solar Panel

The 445Wp Marley SolarTile® photovoltaic roof panel provides a higher peak power output than the 335Wp panel, delivering up to 445Wp per tile. This increased capacity allows homeowners to generate more electricity from the same roof area or install fewer tiles to achieve the desired system output.

Utilising All Glass technology, the 44Wp panels feature N-type TOPCon cells encapsulated between two glass sheets, front and back, improving the panel lifetime by better protecting the cells from oxidation. As a result, the power output guarantee for the 445-AG is improved to 95% of rated power at 10 years and 87% at 30 years.

335Wp Solar Panel

The 335Wp Marley SolarTile® is recognised in the roofing industry for its straightforward installation and reliable performance and has been installed on projects across the UK and Europe. It can provide up to 33Wp of peak output per panel and can be installed in arrays of any shape or size.

It is well-suited to domestic properties with limited roof space or roof obstacles such as dormers or roof windows. Its integrated design means a flush fit with the roof plane, providing a reliable renewable energy source while maintaining the aesthetics of the roof, along with tested wind and fire performance.
