The Delta Dual V4 packaged pump station has been designed specifically to work in unity with the Delta cavity drained system (Type C waterproofing) to collect groundwater via a perimeter channel or modular drainage.

Delta Dual V4 is suitable for collecting groundwater from a 150m² basement that requires a head height of up to 8m. It is capable of pumping 12m² of surface area in addition to groundwater.

Delta Dual V4 includes chamber, all internal pipework, and two powerful Delta V4 submersible pumps.

It should not be used to collect grey water from showers and hand basins, or foul water from a water closet.

Key features

  • Suitable for ground, surface, storm and grey water applications

  • Flow rate up to 2 l/s at 6.5m head

  • Chamber manufactured from superior virgin tank grade HDPE enabling the Delta Dual V4 to withstand hydrostatic forces encountered in applications with high water tables

  • All internal pipework is pre-assembled within the chamber including non-return valve

  • Quick and simple installation

  • Supplied with two powerful Delta Dual V4 submersible pumps

  • Suitable for residential, commercial and heritage projects, and for flood resilience (PFR)

Technical specification

  • Product code: DMS 217-1

  • Chamber: Delta 695

  • Chamber material: superior virgin tank grade HDPE

  • Volume below inlets: 87 litres

  • Clear opening: 330 x 330 mm

  • Fixed inlets: 3x 110mm

  • Discharge: 1¼” BSP Class E

  • Cable duct: 2” / 50mm

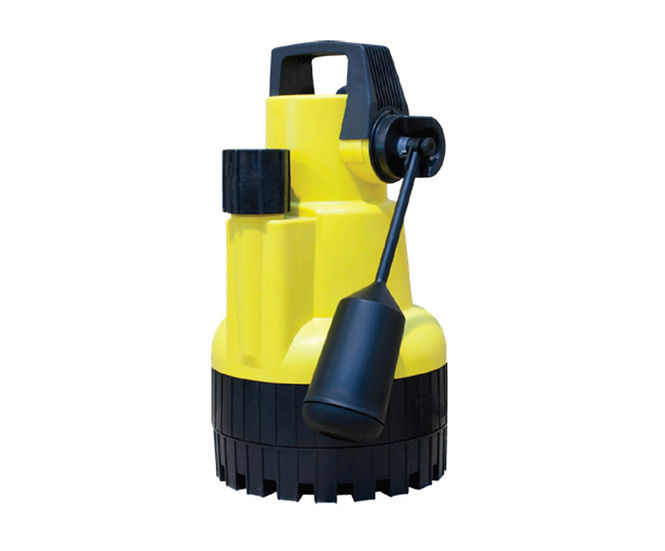

Delta V3 pump

  • Control: automatic

  • Power supply: 230 VAC

  • Rated current: 4.0A

  • Motor rating (P2): 360W

  • Revs per min: 2800 rpm

  • Discharge size: 1¼”

  • Free passage: 10mm

  • Max. vertical: 10m

  • Max. flow rate: 3.3 l/s

  • Max liquid temp: <40°C

  • Cable length: 5m

  • Weight: 5.2kg

  • NBS Specification R18 (Clause 310) Pumping Stations and Pressure Pipelines

  • BS 8102:2022 Type C Drained Protection
