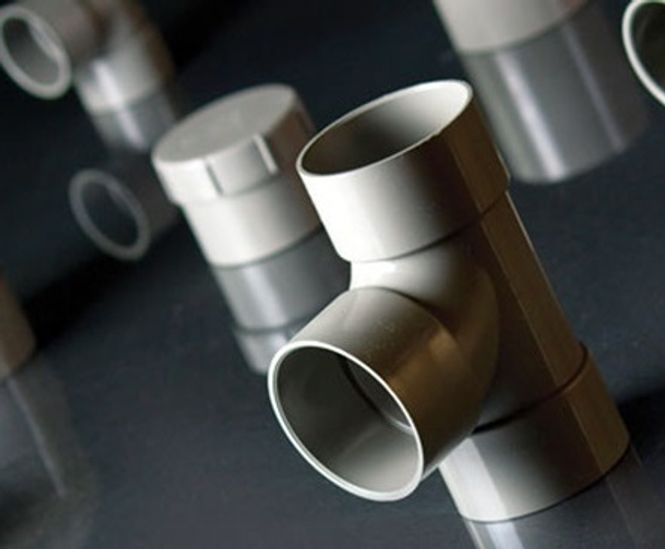

Solvent Waste and Traps is a range of waste, trap, overflow, and condensate systems for industrial and commercial plumbing. Connects with Wavin Osma Solvent PVC-U Soil and Wavin AS Acoustic soil systems. Trap system is manufactured in polyethylene. PVC-C solvent weld waste is available for interior and exterior use. Overflow system is manufactured in ABS fittings and PVC-U pipe. Trap sizes are 32mm, 40mm, and 50mm. Overflow system is 21.5mm.

  • Includes domestic traps and accessories (tubular, bottle, bath, washing machine traps, and shower gullies), PVC-C solvent weld waste, solvent weld overflow, and condensate drainage

  • Trap diameters: 32mm, 40mm, 50mm

  • Overflow system diameter: 21.5mm

  • Polyethylene traps manufactured to BS 3943:1983

  • PVC-C waste system withstands higher in-service temperatures with UV and heat resistance

  • 21.5mm overflow system allows direct connection to condensing boiler fittings

  • Compatible with copper pipe and all Wavin Solvent waste systems

  • Condensate drainage complies with Part L of the Building Regulations

Applications

  • Industrial and commercial plumbing installations

  • Domestic waste drainage (baths, showers, washing machines)

  • Overflow removal from condensing boilers, cisterns, and tanks

  • Condensate drainage from new domestic condensing boilers

Dimensions

Trap diameters: 32mm, 40mm, 50mm Overflow system diameter: 21.5mm

Materials

Polyethylene (traps) PVC-C (solvent weld waste) ABS (overflow fittings) PVC-U (overflow pipe)

Performance

UV and heat resistance (PVC-C) Fire retardant (PVC-C)

Product Accreditations

BS 3943:1983 (polyethylene traps) Part L of the Building Regulations (condensate drainage)
