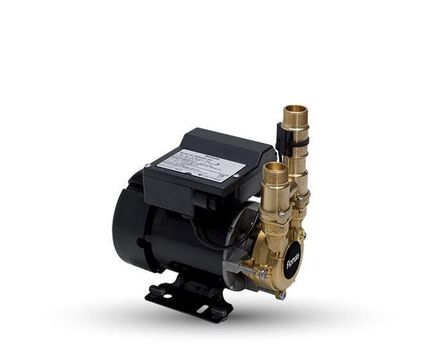

Product name Mainsboost™ Flomate
Suitability Domestic
Max. flow 30 litres/min
Max. pressure 3.2 bar




Designed to be connected directly to the incoming mains supply, Mainsboost™ Flomate pumps provide a regulated flow of water, are WRAS-approved and fully compliant with UK water regulations. They are compact and easy to install, with no on-site commissioning required. Mainsboost™ Flomate can be installed discretely within a standard kitchen cupboard.

Key features

  • Output flow rates of 12-30 litres/min
  • 2.2 to 3.2 bar pressure
  • 60 to 300 litres capacity vessel options
  • Built-in bypass
  • Quiet operation
  • Automatic switching
  • Dry run protection
  • Continuously rated
  • Robust brass construction
  • 3-year warranty
  • Long-life mechanical seal

Accreditation

  • WRAS approved
  • UK water regulations compliant
  • ISO 9001:2015
  • BS EN 60335 compliant
  • CE compliant

Models in the range

  • Mainsboost Flomate MBF 12

Suitable for low occupancy properties with typically one bathroom. The Mainsboost Flomate MBF 12 pump is designed to be connected directly to the incoming mains and will deliver an additional 1.5 bar pressure to the existing mains pressure and a maximum flow rate of 12 litres per minute.

  • Mainsboost Flomate MBF 60-1-15

Designed for low occupancy properties with one bathroom and fits neatly within a standard 500 mm kitchen base unit. Mainsboost Flomate MBF 60 can be connected directly to the incoming mains and will deliver up to 16 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 80-1-15

Designed for low occupancy properties with one bathroom and fits neatly within a standard 500 mm kitchen base unit. Mainsboost Flomate MBF 80 can be connected directly to the incoming mains and will deliver up to 16 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 100-1-15

Mainsboost Flomate MBF 100 is suitable for domestic properties with one bathroom. Designed to sit within a typical kitchen 600 mm larder style cupboard it will deliver up to 18 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 200-1-15

Mainsboost Flomate MBF 200 is suitable for domestic applications with one or two bathrooms. Designed to sit within a typical kitchen 600 mm larder style cupboard it will deliver up to 24 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 300-1-15

Mainsboost Flomate MBF 300 is suitable for domestic applications with one or two bathrooms. Designed to sit within a typical kitchen 600 mm larder style cupboard it will deliver up to 24 litres/minute flow at 3.2 bar pressure.


Designed to be connected directly to the incoming mains supply, Mainsboost™ Flomate pumps provide a regulated flow of water, are WRAS-approved and fully compliant with UK water regulations. They are compact and easy to install, with no on-site commissioning required. Mainsboost™ Flomate can be installed discretely within a standard kitchen cupboard.

Key features

  • Output flow rates of 12-30 litres/min
  • 2.2 to 3.2 bar pressure
  • 60 to 300 litres capacity vessel options
  • Built-in bypass
  • Quiet operation
  • Automatic switching
  • Dry run protection
  • Continuously rated
  • Robust brass construction
  • 3-year warranty
  • Long-life mechanical seal

Accreditation

  • WRAS approved
  • UK water regulations compliant
  • ISO 9001:2015
  • BS EN 60335 compliant
  • CE compliant

Models in the range

  • Mainsboost Flomate MBF 12

Suitable for low occupancy properties with typically one bathroom. The Mainsboost Flomate MBF 12 pump is designed to be connected directly to the incoming mains and will deliver an additional 1.5 bar pressure to the existing mains pressure and a maximum flow rate of 12 litres per minute.

  • Mainsboost Flomate MBF 60-1-15

Designed for low occupancy properties with one bathroom and fits neatly within a standard 500 mm kitchen base unit. Mainsboost Flomate MBF 60 can be connected directly to the incoming mains and will deliver up to 16 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 80-1-15

Designed for low occupancy properties with one bathroom and fits neatly within a standard 500 mm kitchen base unit. Mainsboost Flomate MBF 80 can be connected directly to the incoming mains and will deliver up to 16 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 100-1-15

Mainsboost Flomate MBF 100 is suitable for domestic properties with one bathroom. Designed to sit within a typical kitchen 600 mm larder style cupboard it will deliver up to 18 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 200-1-15

Mainsboost Flomate MBF 200 is suitable for domestic applications with one or two bathrooms. Designed to sit within a typical kitchen 600 mm larder style cupboard it will deliver up to 24 litres/minute flow at 3.2 bar pressure.

  • Mainsboost Flomate MBF 300-1-15

Mainsboost Flomate MBF 300 is suitable for domestic applications with one or two bathrooms. Designed to sit within a typical kitchen 600 mm larder style cupboard it will deliver up to 24 litres/minute flow at 3.2 bar pressure.
