Product name SCS-Diluter
System type Mechanical extract ventilation
Applications Commercial / public
Warehouses / factories
Ventilation type Recirculation system
Suitability Single room
Area of installation Free standing
Max. airflow 12,000m3/h




For applications where source extraction and hoods are not an option, for example if metalwork pieces are too big to be covered by extraction arms, as in the ship-building and transport industry, or if welders constantly move in between positions, Plymovent has developed the SCS-Diluter - a general filtration system that can control welding fumes in large facilities.

The SCS-Diluter does not need any ductwork, and can be used in large workshops with various welding processes, changing activities, crane transportation and locations where ductwork is difficult to install.

Components

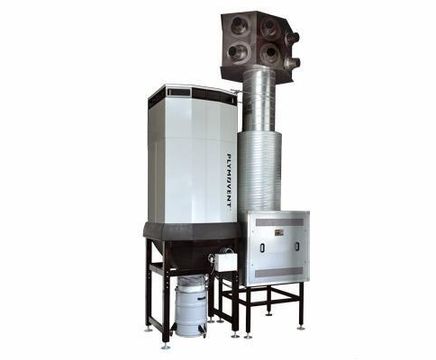

The Diluter system consists of three main components: the SCS-filter unit, a fan and the Diluter itself. The Diluter is an air circulation unit with six multidirectional outlet nozzles. The unit re-circulates the cleaned air into the workshop by means of the outlet nozzles.

The nozzles can be rotated to optimise air distribution. The airflows from the nozzles can be controlled individually making the system unique. Positioning the nozzles directly towards the welding fume layer gives the best result (usually between four and six meters). The main benefit is the relatively small investment for controlling welding fumes in your plant.

The SCS-Diluter is available with the new filter controls of Plymovent; the ControlPro and the ControlGo.

SCS-Diluter PRO

The SCS-Diluter PRO is fitted with the ControlPro. This version has a control with an intuitive touchscreen interface that shows at a glance how the system is performing, what the system is doing now, will do next and how to keep it in shape. An extensive and very accessible menu allows full adaptability in an easy way. ControlPro uses ethernet communication for a wide variety of connectivity options. ControlPro is the control that meets the full needs of the professional user: Simple, Insight, Connected.

SCS-Diluter GO

The SCS-Diluter GO has integrated control unit the ControlGo. The ControlGo is built on the same platform as the ControlPro, offering the same performance, but with preset configurations for the user with basic needs. The SCS-Diluter GO uses push buttons and indicator lights for simple interaction and meets the basic needs of any user.

Key features

  • Low installation cost
  • Flexible
  • Efficient filtration

Applications

The SCS-Diluter has been specially designed for light to medium welding processes.


For applications where source extraction and hoods are not an option, for example if metalwork pieces are too big to be covered by extraction arms, as in the ship-building and transport industry, or if welders constantly move in between positions, Plymovent has developed the SCS-Diluter - a general filtration system that can control welding fumes in large facilities.

The SCS-Diluter does not need any ductwork, and can be used in large workshops with various welding processes, changing activities, crane transportation and locations where ductwork is difficult to install.

Components

The Diluter system consists of three main components: the SCS-filter unit, a fan and the Diluter itself. The Diluter is an air circulation unit with six multidirectional outlet nozzles. The unit re-circulates the cleaned air into the workshop by means of the outlet nozzles.

The nozzles can be rotated to optimise air distribution. The airflows from the nozzles can be controlled individually making the system unique. Positioning the nozzles directly towards the welding fume layer gives the best result (usually between four and six meters). The main benefit is the relatively small investment for controlling welding fumes in your plant.

The SCS-Diluter is available with the new filter controls of Plymovent; the ControlPro and the ControlGo.

SCS-Diluter PRO

The SCS-Diluter PRO is fitted with the ControlPro. This version has a control with an intuitive touchscreen interface that shows at a glance how the system is performing, what the system is doing now, will do next and how to keep it in shape. An extensive and very accessible menu allows full adaptability in an easy way. ControlPro uses ethernet communication for a wide variety of connectivity options. ControlPro is the control that meets the full needs of the professional user: Simple, Insight, Connected.

SCS-Diluter GO

The SCS-Diluter GO has integrated control unit the ControlGo. The ControlGo is built on the same platform as the ControlPro, offering the same performance, but with preset configurations for the user with basic needs. The SCS-Diluter GO uses push buttons and indicator lights for simple interaction and meets the basic needs of any user.

Key features

  • Low installation cost
  • Flexible
  • Efficient filtration

Applications

The SCS-Diluter has been specially designed for light to medium welding processes.
