Centrum is a series of 2 to 3 parallel-switched, non-self-priming stainless steel high-pressure multistage centrifugal pumps with speed-controlled motors.

Applications

Centrum pumps provide fully automatic water supply and pressure boosting in inlet mode from a tank, for domestic, commercial, industrial and municipal applications (eg residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies).

Approved fluids are generally waters which do not attack the materials used, neither chemically nor mechanically, and do not contain any abrasive or long-fiber constituents like:

Drinking water (check drinking water approvals in materials section)
Cooling water
Process water

Key features and benefits

Compact system with outstanding price/performance ratio due to Helix V series stainless steel high-pressure multistage centrifugal pumps
Integrated full motor protection with thermistor sensor (PTC)
Automatic deactivation in the event of low water via the motor control electronics (switch optional)
Maximum degree of control using the simple navigation and adjustment using rotary knob
Tank with interconnecting pipework on a common base frame
Wilo ElectronicControl protects the pump against: dry run, excess current, excess water temperature, frost, short-circuit, overvoltage, undervoltage

Technical data

1~230 V ± 10 %, 50 Hz; mains connection (other versions on request)
Fluid temperature: 50°C max
Ambient temperature: 40°C max
Operating pressure: 10 bar
Inlet pressure: 10 bar
Nominal connection diameters on discharge side: R 1 1/4” - R 2 1/2"
Nominal connection diameters on inlet side: R 1 1/4” - R 2 1/2"
Speed range: 1500-3500rpm
Protection class: IP 54
Fuse protection on mains side: A, AC 3 according to motor power and EVU regulations
Approved fluids: cooling water; potable and process water (other fluids on request)

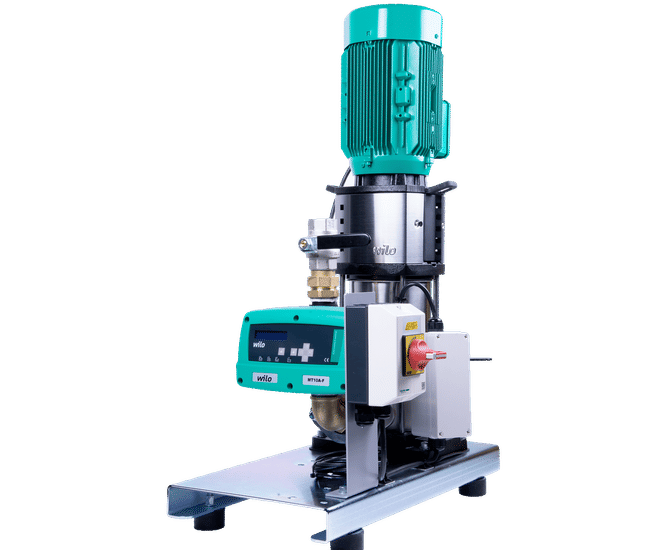

Centrum pressure-boosting, multistage centrifugal pump
