Product name UltraFlex
Media handled Dust
Fumes
Vapours
Features Flexible
Suitability Assembly
Metal working
Maximum reach (mm) 4000
Maximum airflow (m3/h) 1600

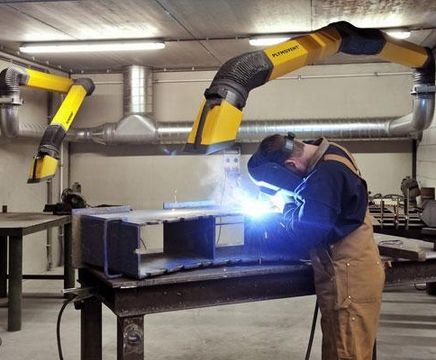

The UltraFlex extraction arm provides ease of operation during welding operations in which the position of the extraction arm has to be frequently adjusted.

A balance wheel system keeps maintenance to a minimum and immediately converts each manual adjustment to the arm into a stable extraction position. The UltraFlex is available in arm length from 3 up to 4 m and have an extraction capacity of 600-1600 m3/h. UltraFlex is suitable for both mobile and stationary welding fume extraction systems.

Recommended for

  • Maintenance and production welding
  • Workbench applications
  • Low ceilings

Low ceilings use

The UltraFlex-4/LC (LC=Low Ceiling) is a wall-mounted flexible extraction arm with a rotatable hood RotaHood. The arm is provided with the BalanceWheel spring balance system for ultra-light, user friendly positioning of the arm.
The UltraFlex-4/LC is particularly suitable to be mounted under low ceilings (minimum: 2500 mm/100 in.)

Key features

  • For standard to high number of position changes
  • Very easy/light operation
  • Reach from 3 up to 4m
  • Balance wheel, friction-free spring-supported balance system that compensates the weight of the arm and allows ultra light repositioning of the arm
  • Low maintenance requirement substantially less than "friction" based arms
  • RotaHood 360-degree friction free rotatable extraction hood for easy positioning
  • Light impact resistant industrial plastic tubes
  • Standard Ø 200 mm smooth tubes to allow high capacity against low pressure drop
  • Low ceiling version


The UltraFlex extraction arm provides ease of operation during welding operations in which the position of the extraction arm has to be frequently adjusted.

A balance wheel system keeps maintenance to a minimum and immediately converts each manual adjustment to the arm into a stable extraction position. The UltraFlex is available in arm length from 3 up to 4 m and have an extraction capacity of 600-1600 m3/h. UltraFlex is suitable for both mobile and stationary welding fume extraction systems.

Recommended for

  • Maintenance and production welding
  • Workbench applications
  • Low ceilings

Low ceilings use

The UltraFlex-4/LC (LC=Low Ceiling) is a wall-mounted flexible extraction arm with a rotatable hood RotaHood. The arm is provided with the BalanceWheel spring balance system for ultra-light, user friendly positioning of the arm.
The UltraFlex-4/LC is particularly suitable to be mounted under low ceilings (minimum: 2500 mm/100 in.)

Key features

  • For standard to high number of position changes
  • Very easy/light operation
  • Reach from 3 up to 4m
  • Balance wheel, friction-free spring-supported balance system that compensates the weight of the arm and allows ultra light repositioning of the arm
  • Low maintenance requirement substantially less than "friction" based arms
  • RotaHood 360-degree friction free rotatable extraction hood for easy positioning
  • Light impact resistant industrial plastic tubes
  • Standard Ø 200 mm smooth tubes to allow high capacity against low pressure drop
  • Low ceiling version
