Product name Aquaboost iMatic
Product code 47359, 47360, 47361
Suitability Commercial
Industrial
Number of pumps 1; 2

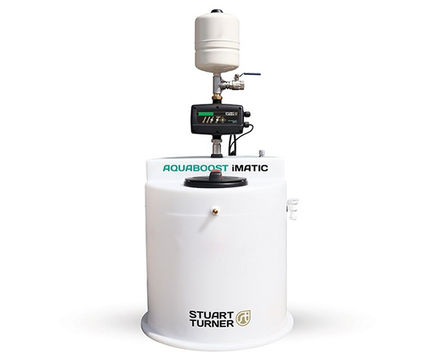

The Aquaboost iMatic range of booster sets features one- or two-pump submersible multistage pumps controlled by a dedicated variable speed frequency invertor.

Aquaboost iMatic 0304 1S-CMT/8 450 - 47359

The single-pump 450-litre tank is fitted with an 0304 stainless steel pump, capable of delivering flow rates up to 6.0m³/hour and producing head pressures of up to 6.4 bar.

Key features

  • Single pump
  • Flow rates up to 6.0m³/h
  • Head pressure up to 6.4 bar
  • Single 304 stainless steel pump
  • 450-litre plastic molded tank, constructed from WRAS approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel-plated WRAS-approved ball valves
  • Union fittings on controller
  • WRAS-approved 8-litre pressure vessel
  • BMS volt-free contacts

Aquaboost iMatic 0304 2S-CMT/24 800 - 47360

The twin-pump 800-litre tank is fitted with two 0304 stainless steel pumps, capable of delivering flow rates up to 6.0m³/hour per pump, and producing head pressures of up to 6.4 bar.

Key features

  • Flow rates up to 12.0m³/h
  • Head pressure up to 6.4 bar
  • Twin 304 stainless steel pumps
  • 800-litre plastic molded tank, constructed from WRAS-approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel-plated WRAS-approved ball valves
  • Union fittings on controller
  • WRAS-approved 24-litre pressure vessel
  • BMS volt-free contacts

Aquaboost iMatic 0504 2S-CMT/24 1200 - 47361

The twin-pump 1200-litre tank is fitted with two 0504 stainless steel pumps, capable of delivering flow rates up to 10.0m³/hour per pump and producing head pressures of up to 6.6 bar.

Key features

  • Flow rates up to 20.0m³/h
  • Head pressure up to 6.6 bar
  • Twin 304 stainless steel pumps
  • 1200-litre plastic molded tank, constructed from WRAS-approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel-plated WRAS-approved ball valves
  • Union fittings on controller
  • WRAS-approved 24-litre pressure vessel
  • BMS volt-free contacts


The Aquaboost iMatic range of booster sets features one- or two-pump submersible multistage pumps controlled by a dedicated variable speed frequency invertor.

Aquaboost iMatic 0304 1S-CMT/8 450 - 47359

The single-pump 450-litre tank is fitted with an 0304 stainless steel pump, capable of delivering flow rates up to 6.0m³/hour and producing head pressures of up to 6.4 bar.

Key features

  • Single pump
  • Flow rates up to 6.0m³/h
  • Head pressure up to 6.4 bar
  • Single 304 stainless steel pump
  • 450-litre plastic molded tank, constructed from WRAS approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel-plated WRAS-approved ball valves
  • Union fittings on controller
  • WRAS-approved 8-litre pressure vessel
  • BMS volt-free contacts

Aquaboost iMatic 0304 2S-CMT/24 800 - 47360

The twin-pump 800-litre tank is fitted with two 0304 stainless steel pumps, capable of delivering flow rates up to 6.0m³/hour per pump, and producing head pressures of up to 6.4 bar.

Key features

  • Flow rates up to 12.0m³/h
  • Head pressure up to 6.4 bar
  • Twin 304 stainless steel pumps
  • 800-litre plastic molded tank, constructed from WRAS-approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel-plated WRAS-approved ball valves
  • Union fittings on controller
  • WRAS-approved 24-litre pressure vessel
  • BMS volt-free contacts

Aquaboost iMatic 0504 2S-CMT/24 1200 - 47361

The twin-pump 1200-litre tank is fitted with two 0504 stainless steel pumps, capable of delivering flow rates up to 10.0m³/hour per pump and producing head pressures of up to 6.6 bar.

Key features

  • Flow rates up to 20.0m³/h
  • Head pressure up to 6.6 bar
  • Twin 304 stainless steel pumps
  • 1200-litre plastic molded tank, constructed from WRAS-approved material
  • Dry run protection
  • Stainless steel / brass discharge fittings
  • Nickel-plated WRAS-approved ball valves
  • Union fittings on controller
  • WRAS-approved 24-litre pressure vessel
  • BMS volt-free contacts





Downloads
  • Aquaboost-iMatic-0304-1S-CMT-8-450-DS
    Aquaboost-iMatic-0304-1S-CMT-8-450-DS
    3pp 740.01KB
    Download
  • Aquaboost-iMatic-0504-2S-CMT-24-1200-DS
    Aquaboost-iMatic-0504-2S-CMT-24-1200-DS
    3pp 885.54KB
    Download
  • Aquaboost-iMatic-0304-2S-CMT-24-800-DS
    Aquaboost-iMatic-0304-2S-CMT-24-800-DS
    3pp 940.14KB
    Download
