Product name SKY Flatglass
Product code 1MF
For the ventilation of Smoke
Suitability Flat roofs
Vent type Sliding
Infill / louvre material Glass

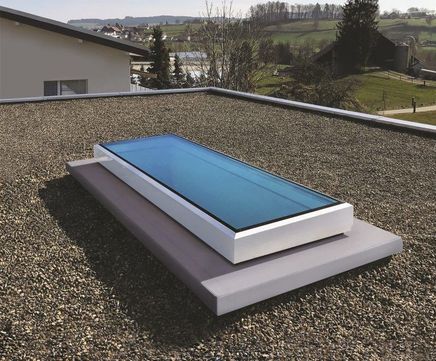

The SKY Flatglass 1MF smoke vent features an innovative sliding cover that provides a stylish, functional approach to natural smoke ventilation. The design combines natural daylight with automatic smoke and heat vent protection. Can be used as a smoke ventilator, roof access hatch with a fixed ladder, and a rooflight, providing three solutions in one. Special sizes can be specified.

Features and benefits

  • Unique sliding cover design does not require wind deflectors for smoke ventilation and features a rigid PVC frame with external metal profiles.
  • Ideal for exposed areas where a hinged opening is impractical.
  • Overlapping design ensures complete weathertightness.
  • Fully-insulated polyester upstand for energy efficiency.
  • Low voltage actuator opens and closes the cover in a smooth and controlled motion.

Standard size

  • 1000 x 1500mm
  • Overall dimensions: 1300 x 1800mm
  • Free aerodynamic area: 1m²
  • Weight: 190kg

Performance standards

  • U-value: 1.26W/m²K
  • Impact-resistance: tested to BS EN 1873:2014 Class SB1200; test impact energy 1200 J
  • Free aerodynamic area: 1.01m²
  • Operation: 24V DC battery-backed control system
  • Weathertight: yes
  • Air leakage: PASS according to EN1873:2014; less than 1.5or 0.5m3/hm at pressure to 150Pa
  • Glass fire reaction: A1 according to EN 13501-1


The SKY Flatglass 1MF smoke vent features an innovative sliding cover that provides a stylish, functional approach to natural smoke ventilation. The design combines natural daylight with automatic smoke and heat vent protection. Can be used as a smoke ventilator, roof access hatch with a fixed ladder, and a rooflight, providing three solutions in one. Special sizes can be specified.

Features and benefits

  • Unique sliding cover design does not require wind deflectors for smoke ventilation and features a rigid PVC frame with external metal profiles.
  • Ideal for exposed areas where a hinged opening is impractical.
  • Overlapping design ensures complete weathertightness.
  • Fully-insulated polyester upstand for energy efficiency.
  • Low voltage actuator opens and closes the cover in a smooth and controlled motion.

Standard size

  • 1000 x 1500mm
  • Overall dimensions: 1300 x 1800mm
  • Free aerodynamic area: 1m²
  • Weight: 190kg

Performance standards

  • U-value: 1.26W/m²K
  • Impact-resistance: tested to BS EN 1873:2014 Class SB1200; test impact energy 1200 J
  • Free aerodynamic area: 1.01m²
  • Operation: 24V DC battery-backed control system
  • Weathertight: yes
  • Air leakage: PASS according to EN1873:2014; less than 1.5or 0.5m3/hm at pressure to 150Pa
  • Glass fire reaction: A1 according to EN 13501-1
