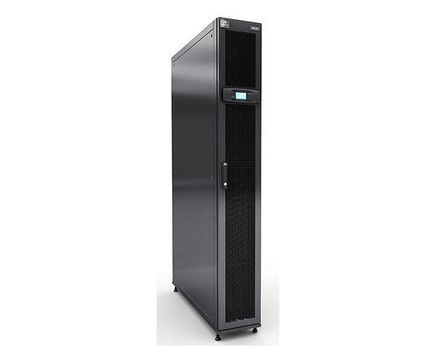

Product name Liebert® CRV
Type IT / telecomms cooling systems
Features EC fans
Variable speed
Horizontal / vertical airflow Horizontal
Installation Floor mounted




Liebert® CRV is a self-contained data centre cooling unit that is ideally suited and designed for cooling server rack cabinets in small and medium data centres. Features Vertiv ICOM control and compressor with modulating capacity, for high reliability and optimised data centre heat management.?????

Models

Liebert CRV uses environmentally-friendly R410A refrigerant, and is available in different versions, depending on data centre design requirements.

  • 10 and 20 kW Direct Expansion (DX) air-cooled version, available in the 300mm frame
  • 23 and 36 kW Direct Expansion (DX) air/water cooled version, available in the 600mm frame
  • 39 to 57 kW Chilled Water (CW) cooled systems, available in the 300mm frame
  • 46 and 58 kW Chilled Water (CW) cooled systems, available in the 600mm frame
  • 50 or 60 Hz models

Benefits

Flexibility

  • Horizontal airflow cooling design is suitable for non-raised or raised floors
  • Air, water, glycol and chilled water systems available
  • Adjustable airflow baffles maximise cooling to rack equipment, allowing the system to be positioned within or at the end of the row
  • Multiple units communicate with each other to improve system performance and reduce energy consumption
  • Up to 10 racks per cooling unit may be monitored to improve system performance and report rack temperatures
  • Vertiv ICOM graphic display allows easy navigation and clear data display

Availability

  • Self-adapts to changing conditions to provide 24/7 precision environmental control: cooling, humidity control and air filtration
  • Vertiv ICOM™ Control provides alerts for preventive maintenance before issues occur
  • Variable capacity compressor adapts to load and eliminates compressor cycling, greatly increasing compressor life-time.

Lowest total cost of ownership

  • Designed for higher return air temperature to maximise cooling capacity
  • Only front and back access required, resulting in minimised installation and service time
  • Variable capacity compressor and variable speed EC fans operate efficiently to reduce energy consumption

Features

  • Variable speed EC plug fans and variable capacity compressor
  • Enlarged range available from 10 to 60 kW
  • Efficient operation with Vertiv ICOM™ Control - the graphic display allows easy navigation and clear data display
  • Includes a 300mm space-saving frame
  • Thermal management and humidity control
  • Installs within the row of racks
  • Low energy consumption

Applications

  • Banking, financial and insurance
  • Broadcast and entertainment
  • Data centre / colocation / hosting
  • Education
  • Government
  • Telecom


Liebert® CRV is a self-contained data centre cooling unit that is ideally suited and designed for cooling server rack cabinets in small and medium data centres. Features Vertiv ICOM control and compressor with modulating capacity, for high reliability and optimised data centre heat management.?????

Models

Liebert CRV uses environmentally-friendly R410A refrigerant, and is available in different versions, depending on data centre design requirements.

  • 10 and 20 kW Direct Expansion (DX) air-cooled version, available in the 300mm frame
  • 23 and 36 kW Direct Expansion (DX) air/water cooled version, available in the 600mm frame
  • 39 to 57 kW Chilled Water (CW) cooled systems, available in the 300mm frame
  • 46 and 58 kW Chilled Water (CW) cooled systems, available in the 600mm frame
  • 50 or 60 Hz models

Benefits

Flexibility

  • Horizontal airflow cooling design is suitable for non-raised or raised floors
  • Air, water, glycol and chilled water systems available
  • Adjustable airflow baffles maximise cooling to rack equipment, allowing the system to be positioned within or at the end of the row
  • Multiple units communicate with each other to improve system performance and reduce energy consumption
  • Up to 10 racks per cooling unit may be monitored to improve system performance and report rack temperatures
  • Vertiv ICOM graphic display allows easy navigation and clear data display

Availability

  • Self-adapts to changing conditions to provide 24/7 precision environmental control: cooling, humidity control and air filtration
  • Vertiv ICOM™ Control provides alerts for preventive maintenance before issues occur
  • Variable capacity compressor adapts to load and eliminates compressor cycling, greatly increasing compressor life-time.

Lowest total cost of ownership

  • Designed for higher return air temperature to maximise cooling capacity
  • Only front and back access required, resulting in minimised installation and service time
  • Variable capacity compressor and variable speed EC fans operate efficiently to reduce energy consumption

Features

  • Variable speed EC plug fans and variable capacity compressor
  • Enlarged range available from 10 to 60 kW
  • Efficient operation with Vertiv ICOM™ Control - the graphic display allows easy navigation and clear data display
  • Includes a 300mm space-saving frame
  • Thermal management and humidity control
  • Installs within the row of racks
  • Low energy consumption

Applications

  • Banking, financial and insurance
  • Broadcast and entertainment
  • Data centre / colocation / hosting
  • Education
  • Government
  • Telecom
