Sector Leisure and hospitality
Project type Refurbishment
Services provided Product / system supply
Project location London
Consultant Architect: Lifschutz Davidson Stanilands
Products used CAM-V underfloor aircon; TU4 & TU350 Fantile units



Overview

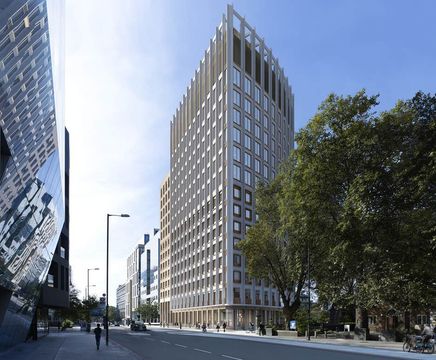

AET’s flexible and adaptable CAM-V underfloor air conditioning system has been installed as part of the ambitious refurbishment of The Hoxton on London's south bank. The former social security office has been transformed into a 192-bed hotel with restaurants, bars and function rooms, as well as 4,000m2 of flexible co-working office space, all within a sleek and contemporary building.

System supplied

The CAM-V system was identified by M&E Consultants Hoare Lea and subsequently chosen by the project team as the most suitable solution for the 5 floors of office space. The Hoxton office space will primarily be used for co-working, with regular changes to layout and function, therefore finding an air conditioning system that could be easily adapted to the ever changing needs of the space was essential.

AET’s modular Fantile units fit seamlessly and can be quickly and easily relocated. AET’S UfAC systems make use of the void beneath the raised floor void, as a plenum, where conditioned supply is distributed, whilst drawing spent room air back to the Conditioned Air Module (CAM) unit at high level by way of return air grille.

The conditioned air is delivered into the space, by induction, via AET’s unique Fantile units, which fit seamlessly into the sub-structure of the raised access floor, and can be quickly and easily relocated at any time.

As the floor plenum is 100% supply air the CAM-V system offers maximum flexibility to the space in terms of where the Fantile units can be placed, allowing for effortless reconfiguration depending on the particular needs of the layout office.

The standard TU4 Fantile units were used throughout the majority of the office space, while AET’s specially designed slimline TU350 Fantile units were used within the central break-out and kitchen areas on each floor. This was due to a reduced 170mm floor void in these areas, which was a result of the design of the building’s structure.

Developer – Enismore (The Hoxton Group)
Architect – Lifschutz Davidson Stanilands
M&E Consultant – Hoare Lea
Quantity Surveyor – Gardiner & Theobald
Main Contractor – Kier
M&E Contractor – Jll Ltd


Overview

AET’s flexible and adaptable CAM-V underfloor air conditioning system has been installed as part of the ambitious refurbishment of The Hoxton on London's south bank. The former social security office has been transformed into a 192-bed hotel with restaurants, bars and function rooms, as well as 4,000m2 of flexible co-working office space, all within a sleek and contemporary building.

System supplied

The CAM-V system was identified by M&E Consultants Hoare Lea and subsequently chosen by the project team as the most suitable solution for the 5 floors of office space. The Hoxton office space will primarily be used for co-working, with regular changes to layout and function, therefore finding an air conditioning system that could be easily adapted to the ever changing needs of the space was essential.

AET’s modular Fantile units fit seamlessly and can be quickly and easily relocated. AET’S UfAC systems make use of the void beneath the raised floor void, as a plenum, where conditioned supply is distributed, whilst drawing spent room air back to the Conditioned Air Module (CAM) unit at high level by way of return air grille.

The conditioned air is delivered into the space, by induction, via AET’s unique Fantile units, which fit seamlessly into the sub-structure of the raised access floor, and can be quickly and easily relocated at any time.

As the floor plenum is 100% supply air the CAM-V system offers maximum flexibility to the space in terms of where the Fantile units can be placed, allowing for effortless reconfiguration depending on the particular needs of the layout office.

The standard TU4 Fantile units were used throughout the majority of the office space, while AET’s specially designed slimline TU350 Fantile units were used within the central break-out and kitchen areas on each floor. This was due to a reduced 170mm floor void in these areas, which was a result of the design of the building’s structure.

Developer – Enismore (The Hoxton Group)
Architect – Lifschutz Davidson Stanilands
M&E Consultant – Hoare Lea
Quantity Surveyor – Gardiner & Theobald
Main Contractor – Kier
M&E Contractor – Jll Ltd
