Product Diffusers
Type Fixed blade
Fixing Ceiling mounted
Shape Square
Material Aluminium
Suitability Supply air

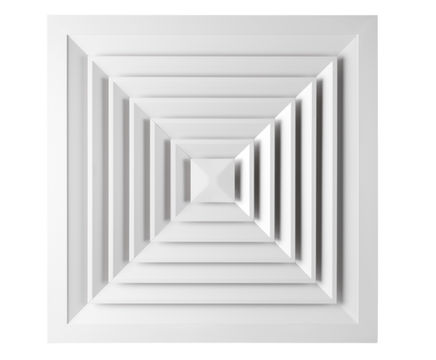

Type ADT Ceiling Diffuser

Application

  • Type ADT ceiling diffusers are used as supply air or extract air diffusers for comfort zones
  • Attractive design element for building owners and architects with demanding aesthetic requirements
  • Horizontal 1, 2, 3, or 4 way supply air discharge for mixed flow ventilation
  • High induction results in a rapid reduction of temperature differences and airflow velocities (supply air variant)
  • For variable and constant volume flows
  • For supply air to room air temperature differences from -10 to +10K
  • For room heights up to 4m (lower edge of suspended ceiling)
  • For all types of ceiling system

Special Characteristics

  • Horizontal 1, 2, 3, or 4 way supply air discharge
  • Diffuser face made of aluminium
  • For all types of ceiling systems
  • Horizontal or vertical duct connection

Nominal Sizes

  • 150, 225, 300, 375, 450, 525, 600 mm


Type ADT Ceiling Diffuser

Application

  • Type ADT ceiling diffusers are used as supply air or extract air diffusers for comfort zones
  • Attractive design element for building owners and architects with demanding aesthetic requirements
  • Horizontal 1, 2, 3, or 4 way supply air discharge for mixed flow ventilation
  • High induction results in a rapid reduction of temperature differences and airflow velocities (supply air variant)
  • For variable and constant volume flows
  • For supply air to room air temperature differences from -10 to +10K
  • For room heights up to 4m (lower edge of suspended ceiling)
  • For all types of ceiling system

Special Characteristics

  • Horizontal 1, 2, 3, or 4 way supply air discharge
  • Diffuser face made of aluminium
  • For all types of ceiling systems
  • Horizontal or vertical duct connection

Nominal Sizes

  • 150, 225, 300, 375, 450, 525, 600 mm
