Suitability Air
Smoke




For use in mechanical smoke extract systems, pressurisation systems, and natural smoke and heat exhaust systems, also for use as an additional supply air inlet

Application

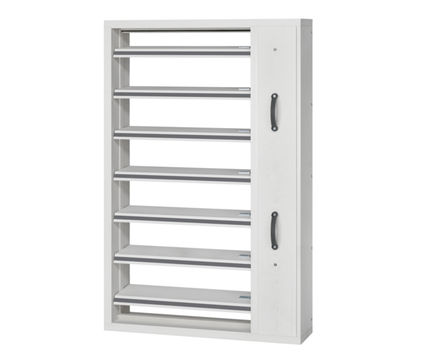

  • Smoke control damper of Type EK-JZ, with CE marking and declaration of performance, for heat and smoke exhaust with mechanical smoke extract systems
  • For the provision of fresh air (additional supply air) to mechanical smoke extract systems
  • In pressurisation systems
  • Can be used for ventilation if the mechanical smoke extract system has been certified (general building inspectorate licence) for use with combined systems
  • Integration into the central BMS with TROXNETCOM

Special characteristics

  • C10,000 for combined smoke extract and ventilation systems
  • Complies with the requirements of EN 12101-8
  • Tested to EN 1366-2 and 1366-10 for fire resistance properties
  • Closed blade air leakage to EN 1751, class 3, and casing air leakage to EN 1751, class C
  • Low sound power level and differential pressure
  • Any airflow direction
  • Manual release is also possible using TROXNETCOM
  • Integration into the central BMS with standard bus systems
  • Long-time testing to EN 1366-10, with a weight being attached to the blades, 10,000 open/close cycles

Classification

  • EI 120/90 (vedw, i ↔ o) S1000 C10,000 MA multi

Nominal sizes

  • 200 × 430 to 1200 × 2030 mm
  • Casing length: L = 250 mm


For use in mechanical smoke extract systems, pressurisation systems, and natural smoke and heat exhaust systems, also for use as an additional supply air inlet

Application

  • Smoke control damper of Type EK-JZ, with CE marking and declaration of performance, for heat and smoke exhaust with mechanical smoke extract systems
  • For the provision of fresh air (additional supply air) to mechanical smoke extract systems
  • In pressurisation systems
  • Can be used for ventilation if the mechanical smoke extract system has been certified (general building inspectorate licence) for use with combined systems
  • Integration into the central BMS with TROXNETCOM

Special characteristics

  • C10,000 for combined smoke extract and ventilation systems
  • Complies with the requirements of EN 12101-8
  • Tested to EN 1366-2 and 1366-10 for fire resistance properties
  • Closed blade air leakage to EN 1751, class 3, and casing air leakage to EN 1751, class C
  • Low sound power level and differential pressure
  • Any airflow direction
  • Manual release is also possible using TROXNETCOM
  • Integration into the central BMS with standard bus systems
  • Long-time testing to EN 1366-10, with a weight being attached to the blades, 10,000 open/close cycles

Classification

  • EI 120/90 (vedw, i ↔ o) S1000 C10,000 MA multi

Nominal sizes

  • 200 × 430 to 1200 × 2030 mm
  • Casing length: L = 250 mm
