Suitability Fire




Compact dimensions, ideal for restricted spaces

Small circular fire damper for the isolation of duct penetrations between fire compartments, available in ten nominal sizes

Application

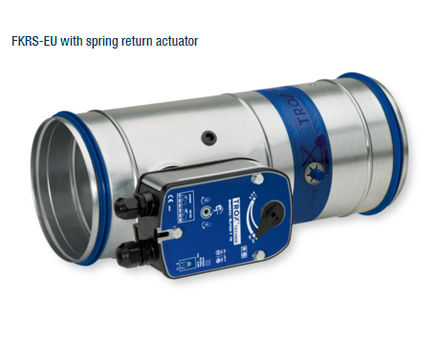

  • Fire dampers of Type FKRS-EU, with CE marking and declaration of performance, for the isolation of duct penetrations between fire compartments in the event of a fire
  • To prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments

Special characteristics

  • Declaration of performance according to Construction Products Regulation
  • Classification to EN 13501-3, up to EI 120 (ve, ho, i ↔ o) S
  • Building inspectorate licence Z-56.4212-991 for fire resistance properties
  • Complies with the requirements of EN 15650
  • Tested to EN 1366-2 for fire resistance properties
  • Hygiene complies with VDI 6022 part 1 (07/2011), VDI 3803 (10/2002), DIN 1946 part 4 (12/2008), and EN 13779 (09/2007)
  • Corrosion protection according to EN 15650 in connection with EN 60068-2-52
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, class C
  • Low differential pressure and sound power level
  • Any airflow direction
  • Integration into the central BMS with TROXNETCOM

Classification

  • Class of performance to EN 13501-3, up to EI 120 (ve, ho, i ↔ o) S

Nominal sizes

  • 100, 125, 150, 160, 180, 200, 224, 250, 280, 315
  • L: 400 mm


Compact dimensions, ideal for restricted spaces

Small circular fire damper for the isolation of duct penetrations between fire compartments, available in ten nominal sizes

Application

  • Fire dampers of Type FKRS-EU, with CE marking and declaration of performance, for the isolation of duct penetrations between fire compartments in the event of a fire
  • To prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments

Special characteristics

  • Declaration of performance according to Construction Products Regulation
  • Classification to EN 13501-3, up to EI 120 (ve, ho, i ↔ o) S
  • Building inspectorate licence Z-56.4212-991 for fire resistance properties
  • Complies with the requirements of EN 15650
  • Tested to EN 1366-2 for fire resistance properties
  • Hygiene complies with VDI 6022 part 1 (07/2011), VDI 3803 (10/2002), DIN 1946 part 4 (12/2008), and EN 13779 (09/2007)
  • Corrosion protection according to EN 15650 in connection with EN 60068-2-52
  • Closed blade air leakage to EN 1751, class 3
  • Casing air leakage to EN 1751, class C
  • Low differential pressure and sound power level
  • Any airflow direction
  • Integration into the central BMS with TROXNETCOM

Classification

  • Class of performance to EN 13501-3, up to EI 120 (ve, ho, i ↔ o) S

Nominal sizes

  • 100, 125, 150, 160, 180, 200, 224, 250, 280, 315
  • L: 400 mm
