Type Variable air volume systems

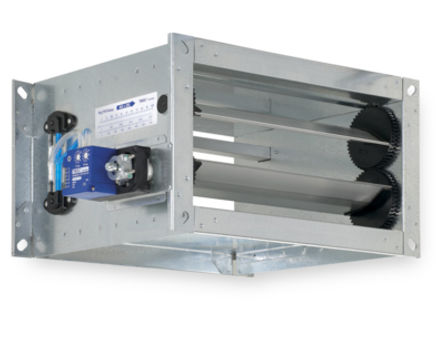

Rectangular VAV terminal units for standard applications regarding the supply air or extract air control in variable air volume systems

  • For volume flow rate ranges up to 36,000 m³/h or 10,000 l/s
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy
  • Suitable for airflow velocities up to 10 m/s
  • Casing air leakage to EN 1751, class B

Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TX for the reduction of air-regenerated noise
  • Hot water heat exchanger of Type WT for reheating the airflow


Rectangular VAV terminal units for standard applications regarding the supply air or extract air control in variable air volume systems

  • For volume flow rate ranges up to 36,000 m³/h or 10,000 l/s
  • Suitable for the control of volume flow rate, room pressure or duct pressure
  • Electronic control components for different applications (Easy, Compact, Universal, and LABCONTROL)
  • High control accuracy
  • Suitable for airflow velocities up to 10 m/s
  • Casing air leakage to EN 1751, class B

Optional equipment and accessories

  • Acoustic cladding for the reduction of case-radiated noise
  • Secondary silencer Type TX for the reduction of air-regenerated noise
  • Hot water heat exchanger of Type WT for reheating the airflow
