Sector Education
Project type New build
Services provided Product / system manufacture
Product / system supply
Installation
Year completed 2018
Project location London
Client Blackheath High School
Consultant Hilson Moran
Products used CAM-V33 direct expansion downflow unit; TU4 Fantiles



Context

AET Flexible Space supplied an underfloor air conditioning system for a new library and resource centre at Blackheath High School to provide comfort cooling for students in the new learning zone.

Project details

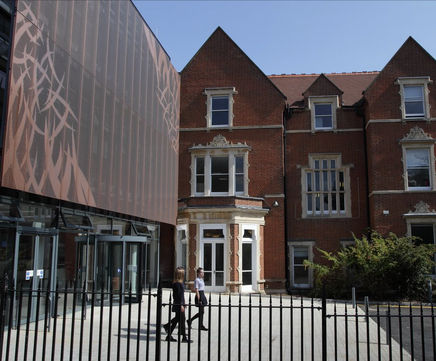

The 3-storey new-build was designed to blend with the existing Victorian structure. The library and resource centre are located in the lower ground floor, sunk beneath the existing site and the new courtyard area. Due to the underground location of the resource centre, air conditioning was required for this area, and an underfloor air conditioning system was specified by consultant Hilson Moran so that the ceiling space, featuring the unique pyramidal skylights, could be left exposed.

Underfloor air conditioning makes use of the plenum beneath a raised access floor to distribute conditioned air. At Blackheath High School, a single CAM-V33 direct expansion downflow unit serves the air-conditioned zone, and the conditioned air is supplied into the space by 14 TU4 Fantiles. The CAM-V receives spent air back for re-conditioning via high-level transfer grilles.

A major challenge with this project was the 900mm-high underfloor void within the main resource area, requiring special modification to the CAM baseframe and raised floor substructure.

Outcome

The new state-of-the-art facility reached practical completion over the summer of 2018 and was ready for students to use in September at the start of the new school year.


Context

AET Flexible Space supplied an underfloor air conditioning system for a new library and resource centre at Blackheath High School to provide comfort cooling for students in the new learning zone.

Project details

The 3-storey new-build was designed to blend with the existing Victorian structure. The library and resource centre are located in the lower ground floor, sunk beneath the existing site and the new courtyard area. Due to the underground location of the resource centre, air conditioning was required for this area, and an underfloor air conditioning system was specified by consultant Hilson Moran so that the ceiling space, featuring the unique pyramidal skylights, could be left exposed.

Underfloor air conditioning makes use of the plenum beneath a raised access floor to distribute conditioned air. At Blackheath High School, a single CAM-V33 direct expansion downflow unit serves the air-conditioned zone, and the conditioned air is supplied into the space by 14 TU4 Fantiles. The CAM-V receives spent air back for re-conditioning via high-level transfer grilles.

A major challenge with this project was the 900mm-high underfloor void within the main resource area, requiring special modification to the CAM baseframe and raised floor substructure.

Outcome

The new state-of-the-art facility reached practical completion over the summer of 2018 and was ready for students to use in September at the start of the new school year.
