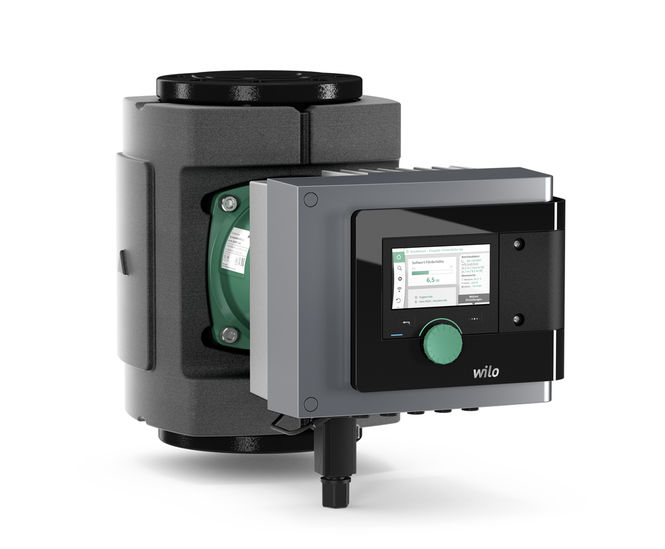

Wilo-Stratos MAXO is designed for commercial HVAC and drinking water applications, and offers optimised energy-saving features combined with excellent user-friendliness for ease of operation.

With optimised and innovative energy-saving features, the Wilo-Stratos MAXO sets new standards for commercial HVAC and drinking water applications in terms of energy efficiency. Its outstanding user-friendliness makes operating the pump easier than ever before.

Wilo-Stratos MAXO is designed as a 'smart' pump, offering greater energy efficiency and intelligent operation through enhanced energy-saving features, control, connectivity, and ease of commissioning and user operation.

Key advantages

  • Intuitive operation using application-guided settings and Green Button Technology.
  • Maximum energy efficiency thanks to the combination of optimised and innovative energy-saving functions (eg No-Flow Stop).
  • Optimum system efficiency thanks to intelligent control functions, such as Dynamic Adapt plus, Multi-Flow Adaptation, T-const. and ΔT-const.
  • Latest communication interfaces (eg Bluetooth) for connection to mobile devices and direct pump networking for multiple pump control via Wilo Net.
  • Maximum convenience in electrical installation thanks to a clearly arranged and spacious terminal room and the optimised Wilo-Connector.

Intelligent control and efficiency

The Wilo-Stratos MAXO pump offers the highest system efficiency available on the market. It achieves its maximum efficiency thanks to optimised and innovative energy-saving functions such as Multi-Flow Adaptation and No-Flow Stop features, as well as its excellent EEI ≤ 0.17 to ≤ 0.19. The combination of additional sophisticated control functions such as Dynamic Adapt plus allows for highest energy efficiency of the Wilo-Stratos MAXO – with easiest operation.

Installation

The Wilo-Stratos MAXO offers maximum convenience for installation and configuration.

  • Easily-accessible, clearly arranged and uniform cable braid.
  • Up to five cable bushings.
  • Separate input for power and for Wilo Net.
  • Coloured labelling of terminals and a clear separation of electrical and communication connections (SELV) for a safe and easy assignment of the terminals.
  • One click commissioning (factory settings: Heating, Dynamic Adapt plus, date and time).
  • Settings assistant: application-based setting of pump function (automatic selection of correct control function).
  • Optimised Wilo-Connector.

Commissioning

The Wilo-Stratos MAXO provides excellent user-friendliness on commissioning.

  • One-click commissioning with factory settings (Heating – Radiator – Dynamic Adapt plus).
  • Settings assistant: application-based setting of pump function (guided selection of correct control function).
  • Intuitive user interface with preview function and application-based presettings.
  • Large display with high resolution and very good legibility.

Awards

  • Design Plus powered by ISH - for sustainability, innovative design and energy-efficient technology.
  • Gold Award, (Technology category) - Blue Innovation Awards, expoenergy 2018.
