Sector Commercial
Project type Refurbishment
Services provided Product / system manufacture
Product / system supply
Year completed 2018
Project location London
Client Sard Verbinnen & Co
Contractor Buckler Environmental / Loop Interiors
Products used CAM-C chilled water system



Context

The Edwardian building at 180 Great Portland Street was originally built for residential apartments but was re-constructed in 2008, converting the restricted cellular floorplan to open plan, modern offices.

The building is accredited with the 2008 BCO Award for Innovation due to its sustainable design, with the introduction of underfloor air conditioning playing a major role in opening up the restrictive floor plates and maximising floor to ceiling heights. The underfloor air conditioning system installed throughout the six floors at 180 Great Portland Street is a CAM-C chilled water system with underfloor supply air and underfloor return air. The CAM-C downflow unit supplies conditioned air into the plenum beneath the raised access floor, which serves as the ventilation zone as well as space for power and IT distribution.

This zone is divided into supply and return air paths using airtight relocatable baffle, the CAM receiving spent air back at floor level for re-conditioning, allowing for the total elimination of services located in the ceiling. Conditioned air is fed into the workspace using modular, relocatable TU4 Fantile units.

Work undertaken

AET supplied and installed additional equipment for the Cat-B fit-out on the 5th floor, for the incoming tenant, strategic communications specialist, Sard Verbinnen & Co.

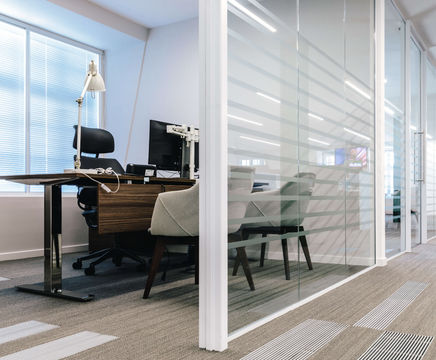

This included additional fan terminals, return air grilles and underfloor air segregation baffle to accommodate the additional cooling requirements and cater to the new workspace layouts defined by the incoming tenant. The client also opted to install sound attenuator boxes beneath the grilles to minimise noise transfer between the open plan workspace, meeting rooms and Director’s offices. User control of the underfloor air conditioning system is enhanced by the addition of seventeen wall mounted Flextouch controllers, permitting remote temperature and fan speed adjustment of the Fantiles without having to physically access the integrated controller within the unit.

Outcome

The fit-out works were handed over and new tenant SVC took over the space month. The final result is high end, comfortable, modern workspace.


Context

The Edwardian building at 180 Great Portland Street was originally built for residential apartments but was re-constructed in 2008, converting the restricted cellular floorplan to open plan, modern offices.

The building is accredited with the 2008 BCO Award for Innovation due to its sustainable design, with the introduction of underfloor air conditioning playing a major role in opening up the restrictive floor plates and maximising floor to ceiling heights. The underfloor air conditioning system installed throughout the six floors at 180 Great Portland Street is a CAM-C chilled water system with underfloor supply air and underfloor return air. The CAM-C downflow unit supplies conditioned air into the plenum beneath the raised access floor, which serves as the ventilation zone as well as space for power and IT distribution.

This zone is divided into supply and return air paths using airtight relocatable baffle, the CAM receiving spent air back at floor level for re-conditioning, allowing for the total elimination of services located in the ceiling. Conditioned air is fed into the workspace using modular, relocatable TU4 Fantile units.

Work undertaken

AET supplied and installed additional equipment for the Cat-B fit-out on the 5th floor, for the incoming tenant, strategic communications specialist, Sard Verbinnen & Co.

This included additional fan terminals, return air grilles and underfloor air segregation baffle to accommodate the additional cooling requirements and cater to the new workspace layouts defined by the incoming tenant. The client also opted to install sound attenuator boxes beneath the grilles to minimise noise transfer between the open plan workspace, meeting rooms and Director’s offices. User control of the underfloor air conditioning system is enhanced by the addition of seventeen wall mounted Flextouch controllers, permitting remote temperature and fan speed adjustment of the Fantiles without having to physically access the integrated controller within the unit.

Outcome

The fit-out works were handed over and new tenant SVC took over the space month. The final result is high end, comfortable, modern workspace.
