Sector Commercial
Project type Refurbishment
Services provided Project management
Product / system manufacture
Product / system supply
Installation
Project location London
Client NFU Mutual
Contractor Twenty1 Construction
Products used AET CAM-V air conditioning system



Context

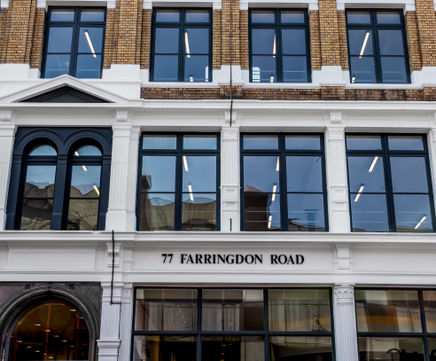

AET Flexible Space havs completed a major upgrade of the underfloor air conditioning system at a historic building located in the Clerkenwell area of London, The Bond Works at 77-79 Farringdon Road.

The building was originally constructed in 1882 as the London premises of Lincolnshire-based engineering firm, Marshall & Sons, and previously underwent a full redevelopment in 2007 by a group of private investors.

Work undertaken

As part of the works, AET Flexible Space upgraded the existing downflow unit controls and replaced all fan terminals on the six refurbished floors with AET Fantiles. Fully conditioned air is fed into the plenum by zonal downflow units (CAM), and is then supplied into the workspace via fan terminal units (Fantile). The Fantile units feature integrated controllers where users can personally adjust fan speed and temperature to suit their own comfort.

The system at Farringdon Road is the equivalent to AET's CAM-V system, supplying conditioned air via the floor plenum and receiving spent air back at high level for reconditioning.

Working for Twenty1 Construction and new building owners, NFU Mutual, AET engineers upgraded the existing units with AET control boards, associated cabling, new actuators and filters. 140 TU4-AC Fantiles were supplied for the six floors of speculative Cat-A accommodation with capacity to add additional terminals for tenant fit-out.


Context

AET Flexible Space havs completed a major upgrade of the underfloor air conditioning system at a historic building located in the Clerkenwell area of London, The Bond Works at 77-79 Farringdon Road.

The building was originally constructed in 1882 as the London premises of Lincolnshire-based engineering firm, Marshall & Sons, and previously underwent a full redevelopment in 2007 by a group of private investors.

Work undertaken

As part of the works, AET Flexible Space upgraded the existing downflow unit controls and replaced all fan terminals on the six refurbished floors with AET Fantiles. Fully conditioned air is fed into the plenum by zonal downflow units (CAM), and is then supplied into the workspace via fan terminal units (Fantile). The Fantile units feature integrated controllers where users can personally adjust fan speed and temperature to suit their own comfort.

The system at Farringdon Road is the equivalent to AET's CAM-V system, supplying conditioned air via the floor plenum and receiving spent air back at high level for reconditioning.

Working for Twenty1 Construction and new building owners, NFU Mutual, AET engineers upgraded the existing units with AET control boards, associated cabling, new actuators and filters. 140 TU4-AC Fantiles were supplied for the six floors of speculative Cat-A accommodation with capacity to add additional terminals for tenant fit-out.
